Float Valves
Heavy Duty Piston Type Float Operated Valve
Complete With Copper Ball (BS 1212)
- 1Description
Nominal Diameter DN32 – DN100 ( 1′ ¼ – 4″ ) Design Standard BS 1212 Max. Working Pressure 16bar - 2Products Specification

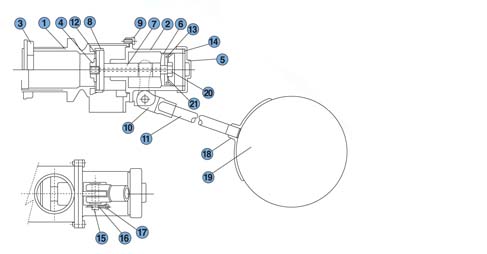

No. Component Material Standard Ref. 1 Body Bronze BS 1400, LG2 2 Bonnect Bronze BS 1400, LG2 3 Lock Nut Bronze BS 1400, LG2 4 End Cap Bronze BS 1400, LG2 5 Piston Cap Bronze BS 1400, LG2 6 Disck Guide Bronze BS 1400, LG2 7 Seat Cap Bronze BS 1400, LG2 8 Cap Urut Stainless Steel BS 970 9 Arm Head Bronze BS 1400, LG2 10 Arm Stainless Steel BS 970 11 Seat Pack EPDM BS EN 681 12 Seat EPDM BS EN 681 13 Seat Pack Pin EPDM BS EN 681 14 Stem Pin Bronze Steel BS EN 681 15 Washer Brass Rod BS 2874 16 Pin Brass Rod BS 2874 17 Ball Heel Brass Rod BS 2874 18 Float Ball Copper BS 1968 20 Nut Stainless Steel BS 970 21 Washer Brass Rod BS 2874 Please Note: Technical data provided is indicative only and may be subject to change without notice
- 3Technical Data

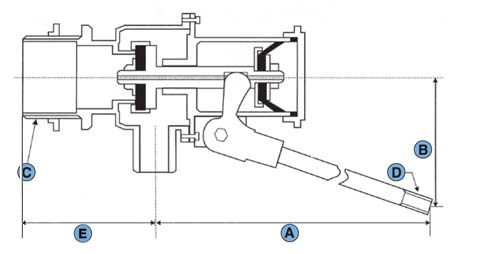

Nominal Size, DN (mm) Size in Inch A (mm) B (mm) C (mm) D (mm) E (mm) Seat Bore, Dia. (mm) 32 1′ ¼ 500 108 G1 ¼” BSW 7/16″ 113.5 12.8 40 1′ ¼ 500 108 G1 ½” BSW 7/16″ 113.5 19.0 50 2″ 530 90 G2″ BSW 9/16″ 131.0 25.0 65 2’½ 545 150 G2 ½” 9/16″ – 12UNC 148.0 50.0 80 3″ 560 200 G3″ ¾” – 10UNC 163.5 60.0 100 4″ 605 140 G4″ ¾” – 10UNC 183.0 74.0 Please Note: Technical data provided is indicative only and may be subject to change without notice
