FLEXIBLE JOINTS
UNIVERSAL COUPLING
Straight Couplings for Various Rigid Material Pipes

  1. 1
    Description

    LYE Universal Coupling is designed for quick and emergency repair of water mains pipeline, for connecting all kind of rigid material pipes of both existing and new pipes (Asbestos Cement, Mild Steel, Ductile Iron, Cast Iron, UPVC, PVCM, PVC-O, ABS Etc). Wedge gasket with circumferential ribs for allowing various pipe preassembled with no need for pipe preparation which is time saving, and compressing to fit for maximun sealing on scored surface, corroded or pitted pipes. Flexible straight coupling with wide tolerence design is ideal for simple and easy underground pipeline repairs by pipe replacemets, as its accommodate angularity between pipes, allowing normal pipeline movement caused by ground settlement.
    .
    • Flexible Couplings with wide tolerance for various kind of pipe
    materials.
    • Ideal for pipeline repair by cut and new pipe replacement method.
    • Working Pressure : PN16
    • Coating : Fusion Bonded Epoxy
    • Sealing : EPDM
    • Angular Deflection : ± 6°
    .
    Standards
    • Design : SPESIFIKASI JKR 20200-0048-99
    • Test : EN 12266-1
    .
    Features
    • Range of Coupling Sizes : DN80 to DN600
    • Universal Coupling for Quick & Emergency Pipe Repairs With
    No Need For Pipe Preparation
    • Wedge gasket allow pipe preassembled and compressed to fit for
    maximum sealing
    • Gasket with circumferential ribs makes sealing on different type
    of water leakage possible (scored, corroded, pitted pipes etc.)
    • Universal coupling with Wide OD Tolerance Simplifies stock holding
    and installation

  2. 2
    Parts List & Materials

  3. 3

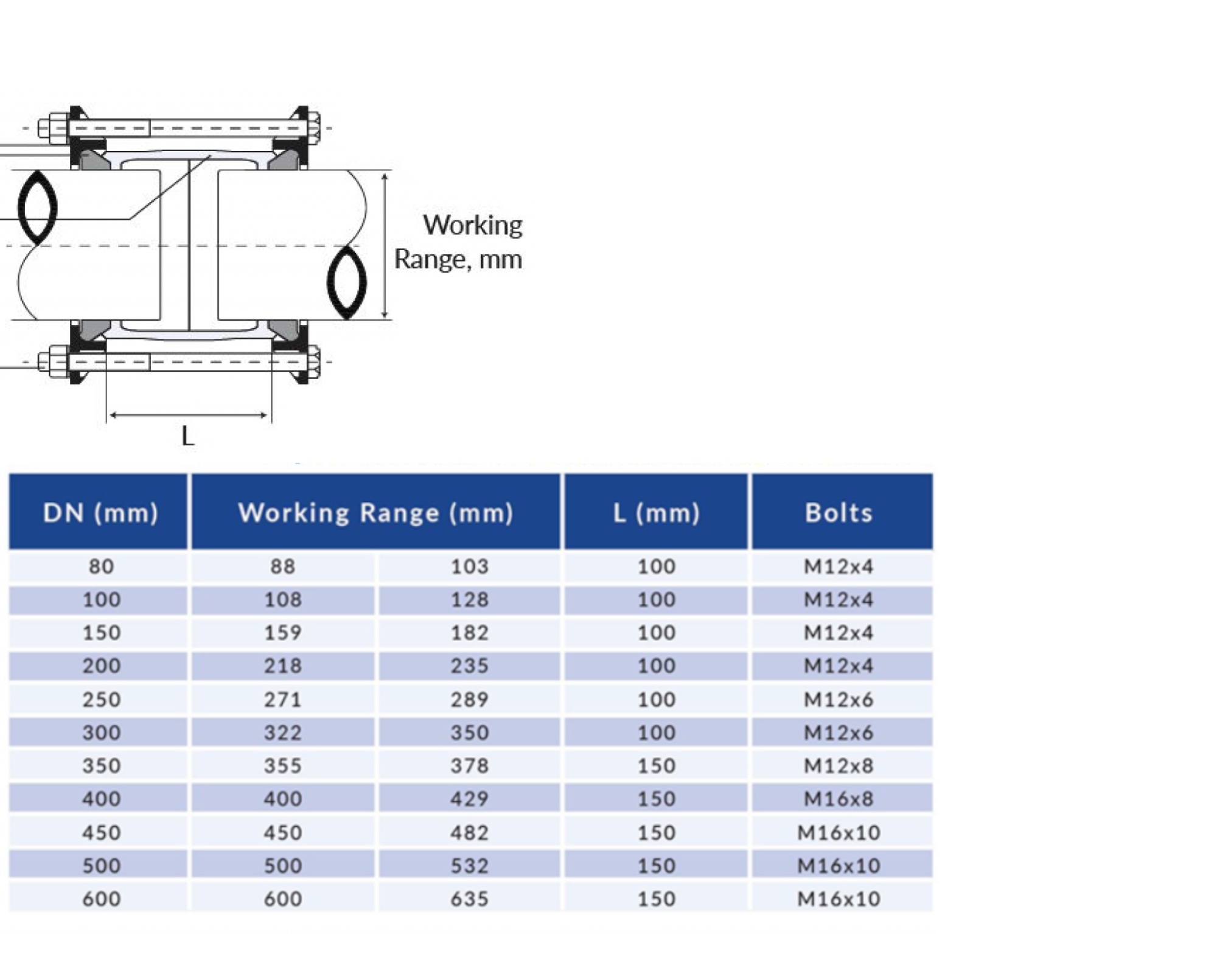

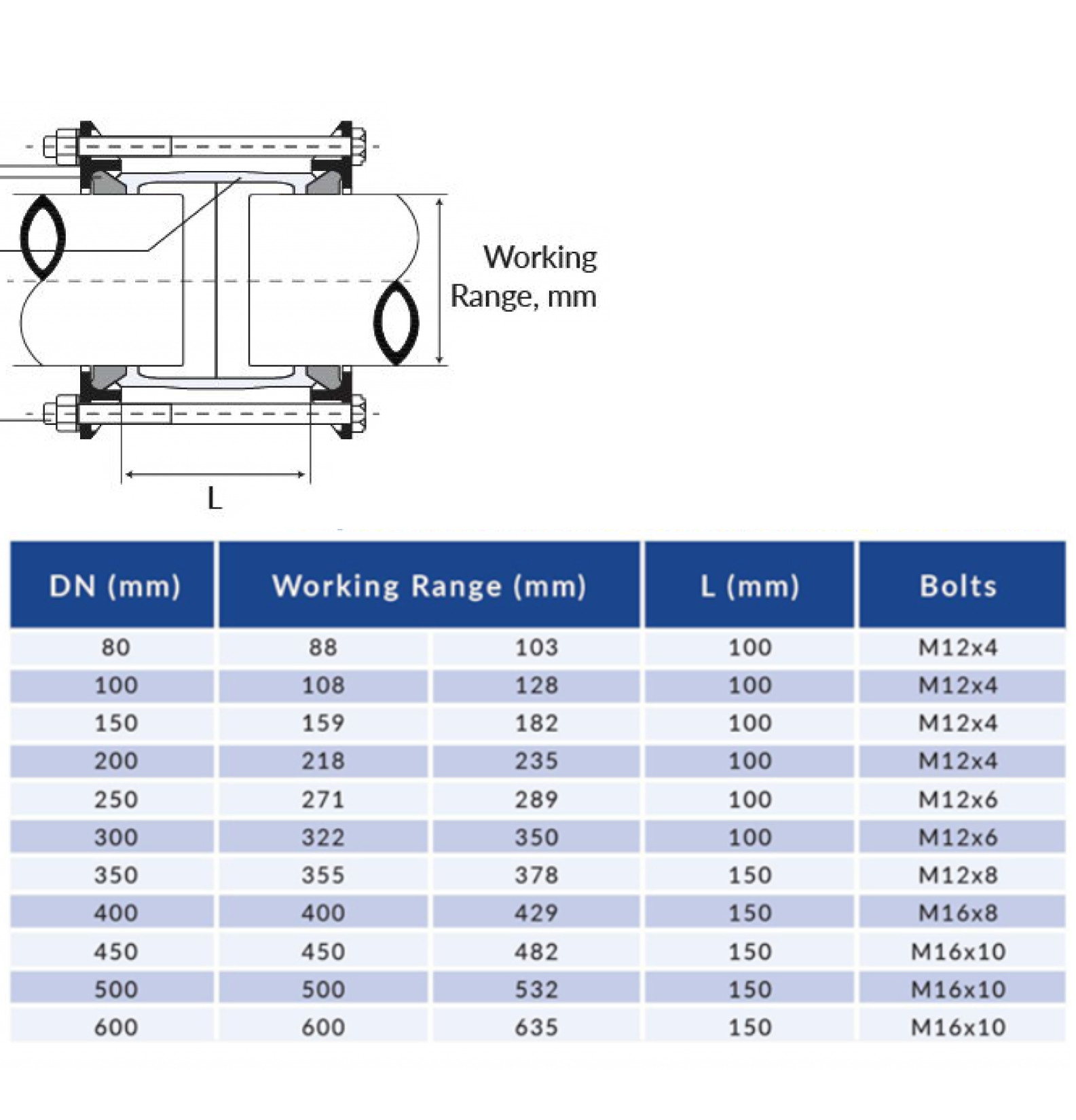

    Specifications & Parameters Chart

  4. 4
    Video
