FLEXIBLE JOINTS
LONG COLLAR MECHANICAL COUPLING
Non-Restraint Straight Couplings for PVC-O, PVCM & Others Plastic Pipe with Similar OD

  1. 1
    Description

    LYE Long Collar Mechanical Coupling is designed to connect plain ended PVC-O, PVCM & other plastic pipe materials with similar outside diameters. Long collar with body length, 300mm product designs is ideal for pipe laying, maintenance and work repairs for preventing plastic pipe pull-out due to internal pressure. It is known as highly cost effective mechnical jointing solution for allowing close tolerance pipeline underground installation.
    .
    • For connecting plain ended PVC-O, PVCM & other plastic pipe
    • materials with similar outside diamaters.
    • Long collar with standard body length of 300mm
    • Suitable for potable water, neutral liquids & sewage
    • Maximum temperature : ­10°C to 70°C
    • Working Pressure : PN16
    • Coating : Fusion Bonded Epoxy
    • Sealing : EPDM
    .
    Standards
    • Test : EN 12266-1
    • For PVC-O Pipe : ISO 16422
    • For PVCM Pipe ( ? DN150 ) : AS/NZS 4765, S1
    • For UPVC Pipe ( ? DN150 ) : AS/NZS 1477, S1
    .
    Features
    • Range of Long Collar Mechanical Joints Sizes : OD110 to OD355
    • Long Collar for Preventing Pipe Pull-Out Due To Internal Pressure In Pipe
    • Wedge Gasket Type allow OD tolerance +1-3mm for water Sealing.
    • Flexible jointing solution for quick & easy installation

  2. 2
    Parts List & Materials

  3. 3

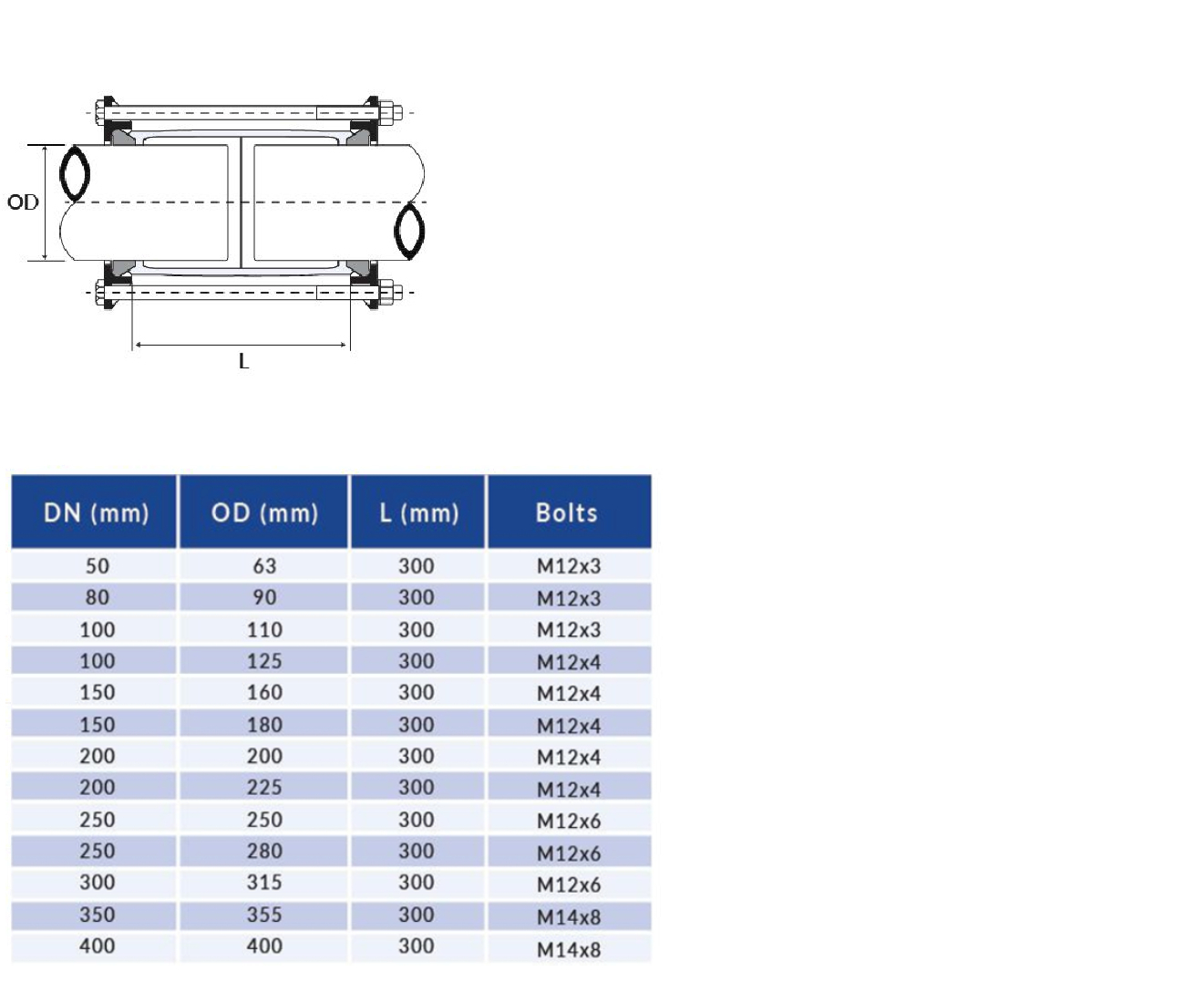

    Specifications & Parameters Chart
