CLAMPS & SADDLES

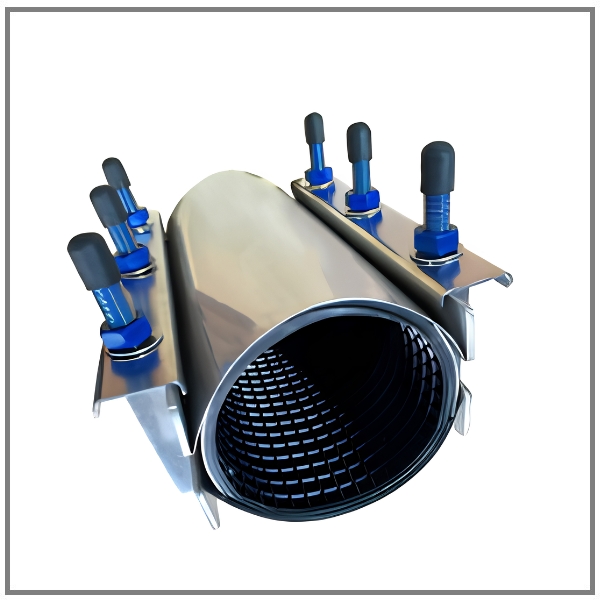

STAINLESS STEEL DOUBLE BAND REPAIR CLAMP
For Under Pressure Pipe Repair
Model No : LYE775DI

  1. 1
    Description

    LYE Full Stainless Steel Repair Clamp, Double Bands is designed for quick and under pressure larger diameter water pipeline repairing of all kinds of pipe materials, from Asbestos Cement, Mild Steel, Ductile Iron, GRP to many type of plastic pipes on both underground & above ground applications. LYE Stainless Steel Repair Clamp solution offering double & multiple bands standards with various operating pressure for allowing emergency repairs by enabling multi functionality, high flexibility and wide tolerances repairing method of all type of water leakages in a large diameter water mains for used of hole, pitting (pin Holes,corrosion leaks), longitudinal & circumferential cracks. Easy & fast installation and reliable functionality of pipe burst & leaks repairs caused by earth settlements or increased traffic load with minimum of disturbance for zero water downtime assurance.
    .
    • For All Kinds of Pipe Material (Asbestos Cement, Mild Steel, Ductile Iron, GRP & Plastics Pipes)
    • Working Pressure : PN 10/16
    • Temperature : ­10°C To + 70°C
    • Sealing : EPDM
    .
    Standards
    • Design : EN 545
    • Test : EN 12266-1
    .
    Features
    • **Double Band Size Range : ? DN350
    • Both Underground And Above Ground Applications
    • Quick And Under Pressure Repairing
    • Suitable For Potable Water And Sewage
    • Repairing Longitudinal Craks, Holes & Pitting (Pin Holes)
    • Suitable For Plastic Pipes Materials ? PN 10
    • If The Damage Is ? 100mm, It Is Only Suitable For Emergency Repairs
    .
    * Good installation practices considerations should be made before any repairing activities are performed
    ** Please contact LYE Marketing for any others larger diameter size range clamps selection

  2. 2
    Parts List & Materials

  3. 3

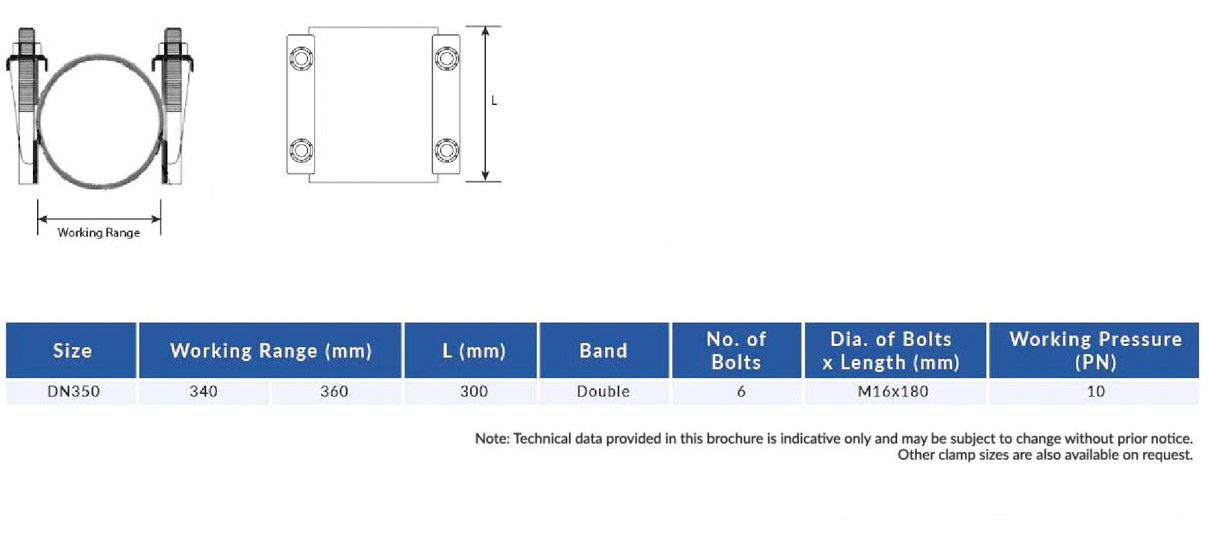

    Specifications & Parameters Chart

  4. 4
    Specifications & Parameters Chart

    .
    .
