JOINT RESTRAINT SOLUTIONS
POLY RESTRAINT LARGE DIAMETER COUPLING
Large Tolerance & Flexible Coupling with End-Loaded Resistance
- 1Description
LYE Poly Restraint Large Diameter Coupling is designed for connecting large diameter PE, PVC-O pipes and others plastic material pipes with similar outside diameter. End restraint gripping allow the total locking of PE Pipe for preventing pipe pull-out during the installation with spigot end pipe or fittings. Design mechanism allows easy asembly and disassembly of water-leaks repairs on the existing / installed large diameter PE pipe which might experience minor pipe ovality & deformation. Flexible large diameter straght coupling with system restraint is an ideal solution for easy and reliable connection for large diameter PE Pipe in both new lay installation, and as well as repairs & maintenance works nagating thrust blocks system. As LYE Poly Restraints Large Diameter Coupling accommodates angularity between pipes, allowing pipeline movement caused by ground settlement, changing flow direction, pressure difference, system vibration and providing easy installation on buried PE & PVC-O Pipes. Alternate Solution to large diameter PE electrofusion and butt fusion, as well as large diameter PVC-O Push-in Joints for all project-site conditions with system flexibility. . • Flexible & Restraint Couplings for connecting large diameter plain ended PE, PVC-O pipes and others plastic material pipes with similar outside diameters. • Ideal for large diameter plastic pipe (PE, PVC-O & Etc) jointing to allow pipeline repairs, maintenance and service works with simple installation, optimizing works efficiency and planning. • Working Pressure : PN10/PN 16 • Coating : Fusion Bonded Epoxy • Sealing : EPDM • Angular Deflection : ± 4° . Standards • Design : EN 12842 • Test : EN 12266-1 • For PE Pipe : EN 12201 / MS 1058 / AS 1159 • For PVC-O Pipe : ISO 16422 . Features • Range of Poly Restraint large diameter Coupling Sizes : OD355 – OD630

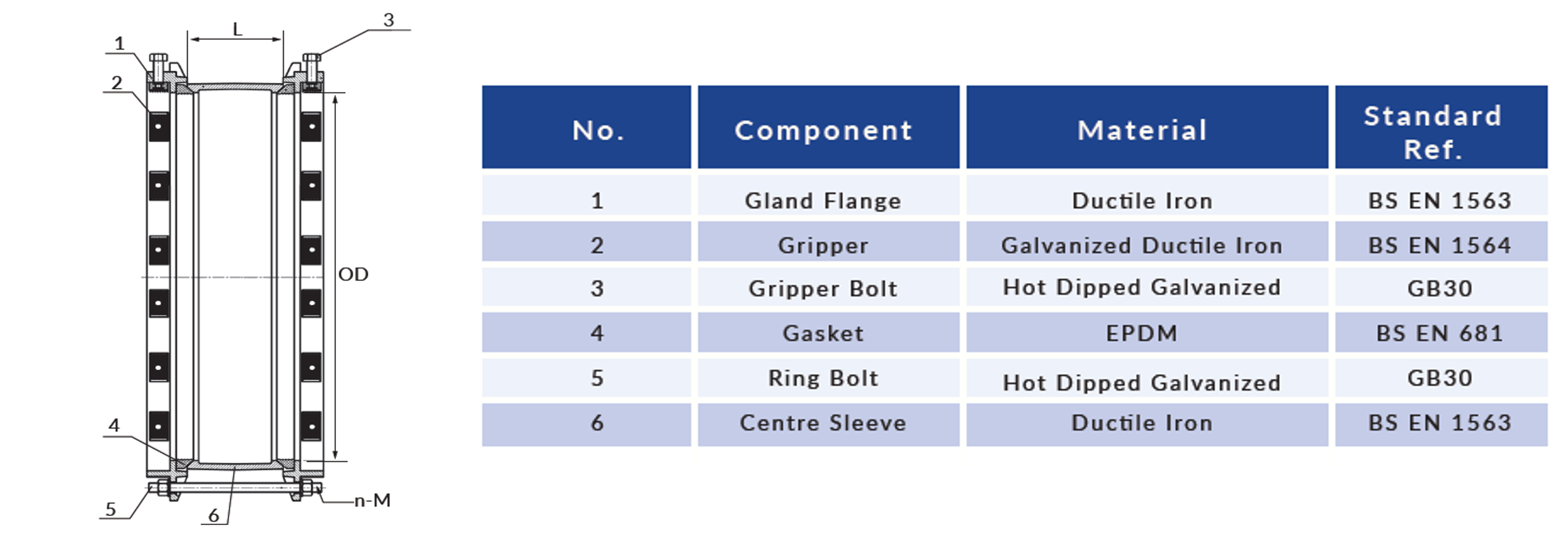

fg• End-load resistant mechanism for total pipe locking & prevention pipe pull-out during installation • Easy installation on buried PE Pipe for accommodating on minor pipe ovality & deformation. • Alternate Solution to Large Diameter PE electrofusion and butt fusion, and Large Diameter PVC-O Push-In Joints for all project-site conditions with system flexibility - 2Parts List & Materials

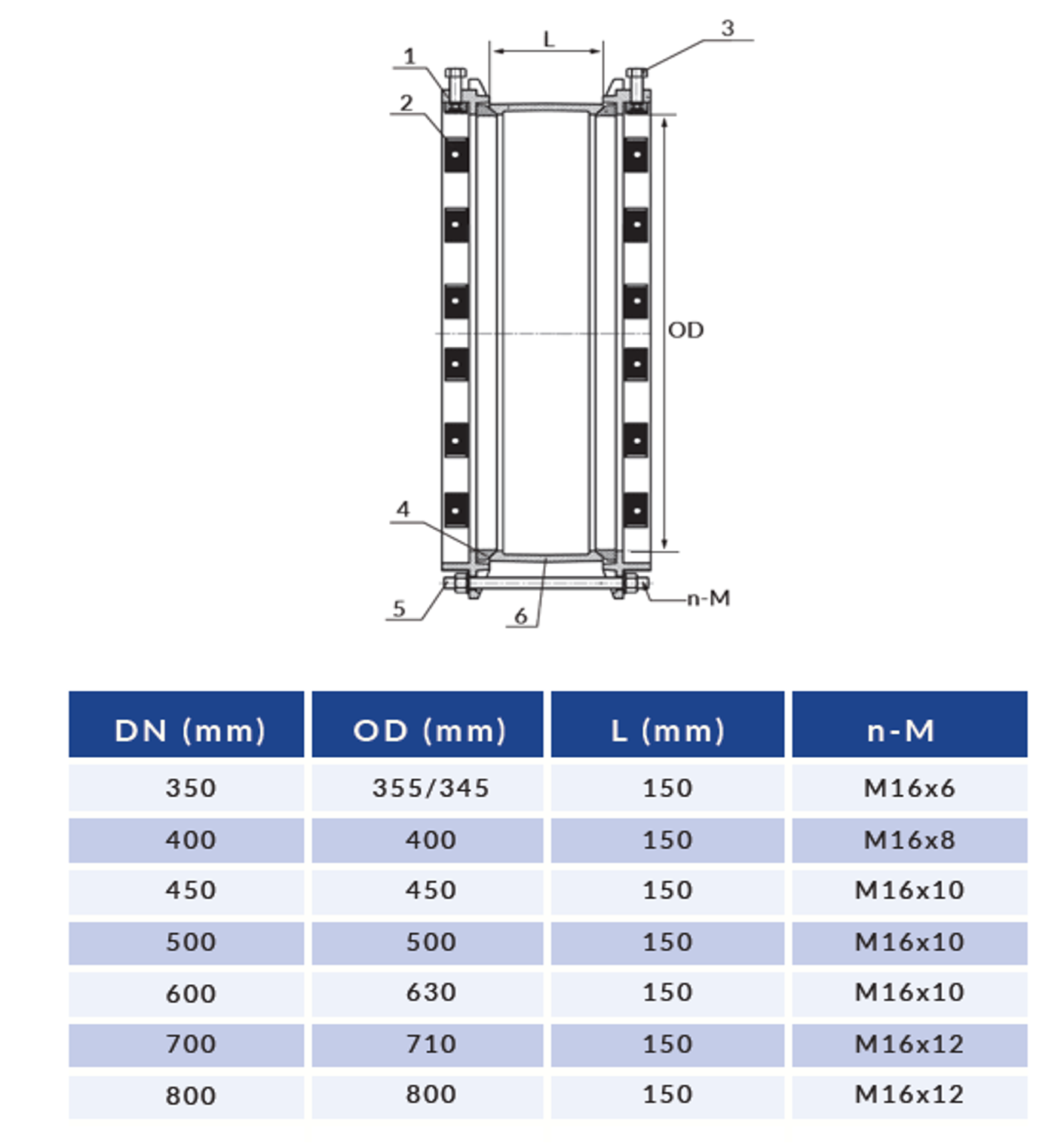

- 3Specifications & Parameters Chart
JOINT RESTRAINT SOLUTIONS
POLY RESTRAINT LARGE DIAMETER COUPLING
Large Tolerance & Flexible Coupling with End-Loaded Resistance
- 1Description
LYE Poly Restraint Large Diameter Coupling is designed for connecting large diameter PE, PVC-O pipes and others plastic material pipes with similar outside diameter. End restraint gripping allow the total locking of PE Pipe for preventing pipe pull-out during the installation with spigot end pipe or fittings. Design mechanism allows easy asembly and disassembly of water-leaks repairs on the existing / installed large diameter PE pipe which might experience minor pipe ovality & deformation. Flexible large diameter straght coupling with system restraint is an ideal solution for easy and reliable connection for large diameter PE Pipe in both new lay installation, and as well as repairs & maintenance works nagating thrust blocks system. As LYE Poly Restraints Large Diameter Coupling accommodates angularity between pipes, allowing pipeline movement caused by ground settlement, changing flow direction, pressure difference, system vibration and providing easy installation on buried PE & PVC-O Pipes. Alternate Solution to large diameter PE electrofusion and butt fusion, as well as large diameter PVC-O Push-in Joints for all project-site conditions with system flexibility. . • Flexible & Restraint Couplings for connecting large diameter plain ended PE, PVC-O pipes and others plastic material pipes with similar outside diameters. • Ideal for large diameter plastic pipe (PE, PVC-O & Etc) jointing to allow pipeline repairs, maintenance and service works with simple installation, optimizing works efficiency and planning. • Working Pressure : PN10/PN 16 • Coating : Fusion Bonded Epoxy • Sealing : EPDM • Angular Deflection : ± 4° . Standards • Design : EN 12842 • Test : EN 12266-1 • For PE Pipe : EN 12201 / MS 1058 / AS 1159 • For PVC-O Pipe : ISO 16422 . Features • Range of Poly Restraint large diameter Coupling Sizes : OD355 – OD630
fg• End-load resistant mechanism for total pipe locking & prevention pipe pull-out during installation • Easy installation on buried PE Pipe for accommodating on minor pipe ovality & deformation. • Alternate Solution to Large Diameter PE electrofusion and butt fusion, and Large Diameter PVC-O Push-In Joints for all project-site conditions with system flexibility - 2Parts List & Materials
- 3Specifications & Parameters Chart
