VALVE CHAMBER
VALVE CHAMBER : 3 SECTIONS
Heavy Duty Hinged Type With Locking System
Model No. : 666H

  1. 1
    Description

    LYE Ductile Iron Valve Chamber complete with cover & 3 sectional body frame 609mm x 320mm x 440mm, a local made products to be awarded “MALAYSIA GOOD DESIGN MARK”, by Malaysia Design Council in year 2005. It is designed with the assembly of combination units with excellent flexibility of chamber depth extension for heavy duty applications, having clear opening of Ø320mm with locking system for prevent unauthorised lifting, opening or removal of cover. Suitable for use of valve installation in wet & dry condition for water, waste-water & sewage applications
    .
    • Excellent Flexibility Of Chamer Depth Extension For Heavy
    Duty Applications.
    • Suitable For Use Of Valve Installation In Wet & Dry Condition
    For Water, Waste-Water & Sewage Applications
    • Breaking Load : 40MT
    • Clear Opening : Ø320mm
    • Coating : Bituminous Coating

    Standards
    • Design & Test : BS EN 124-1&2
    • Classification : D400
    .
    Features
    • Dimension of Valve Chamber : 609mm(H) x 320mm(CO) x 440mm(SQ)
    • For Valve Size Ranges : ? DN300
    • Locking Device Designed For Prevent Unauthorised Lifting,
    Opening Or Removal Of Cover.
    • Extension Ring Height Dimension Is Based On Site Requirement

  2. 2
    Parts List & Materials

  3. 3

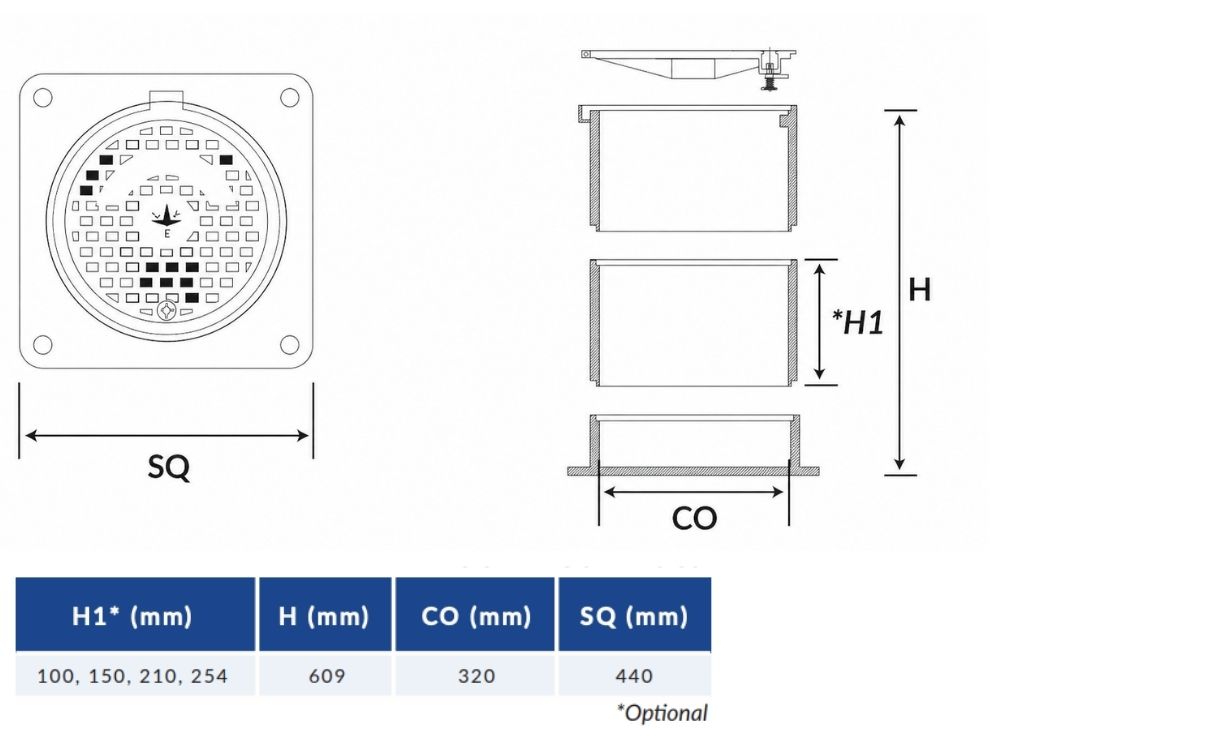

    Specifications & Parameters Chart

VALVE CHAMBER
VALVE CHAMBER : 3 SECTIONS
Heavy Duty Hinged Type With Locking System
Model No. : 666H

  1. 1
    Description

    LYE Ductile Iron Valve Chamber complete with cover & 3 sectional body frame 609mm x 320mm x 440mm, a local made products to be awarded “MALAYSIA GOOD DESIGN MARK”, by Malaysia Design Council in year 2005. It is designed with the assembly of combination units with excellent flexibility of chamber depth extension for heavy duty applications, having clear opening of Ø320mm with locking system for prevent unauthorised lifting, opening or removal of cover. Suitable for use of valve installation in wet & dry condition for water, waste-water & sewage applications
    .
    • Excellent Flexibility Of Chamer Depth Extension For Heavy
    Duty Applications.
    • Suitable For Use Of Valve Installation In Wet & Dry Condition
    For Water, Waste-Water & Sewage Applications
    • Breaking Load : 40MT
    • Clear Opening : Ø320mm
    • Coating : Bituminous Coating

    Standards
    • Design & Test : BS EN 124-1&2
    • Classification : D400
    .
    Features
    • Dimension of Valve Chamber : 609mm(H) x 320mm(CO) x 440mm(SQ)
    • For Valve Size Ranges : ? DN300
    • Locking Device Designed For Prevent Unauthorised Lifting,
    Opening Or Removal Of Cover.
    • Extension Ring Height Dimension Is Based On Site Requirement

  2. 2
    Parts List & Materials

  3. 3
    Specifications & Parameters Chart
