BUTTERFLY VALVE
CONCENTRIC FLANGED TYPE
- 1Description
LYE Concentric Flanged Butterfly Valve, is constructed with full internal rubber lining vulcanized to the body with quarter turn operating for system isolation. Rubber covered internal body makes no risk of corrosion, and as well as tight sealing of disc closure with no deformation of liner. Concentric disc designs is suitable for dual flow operation, hydrodynamic flow, reduced turbulence, to minimize pressure drop across the valve. LYE Concentric Flanged Butterfly is an ultimum choice to any applications with offering high effciency of operation performance. . • Quarter-Turn Isolating Valves With Full Rubber Covered Body

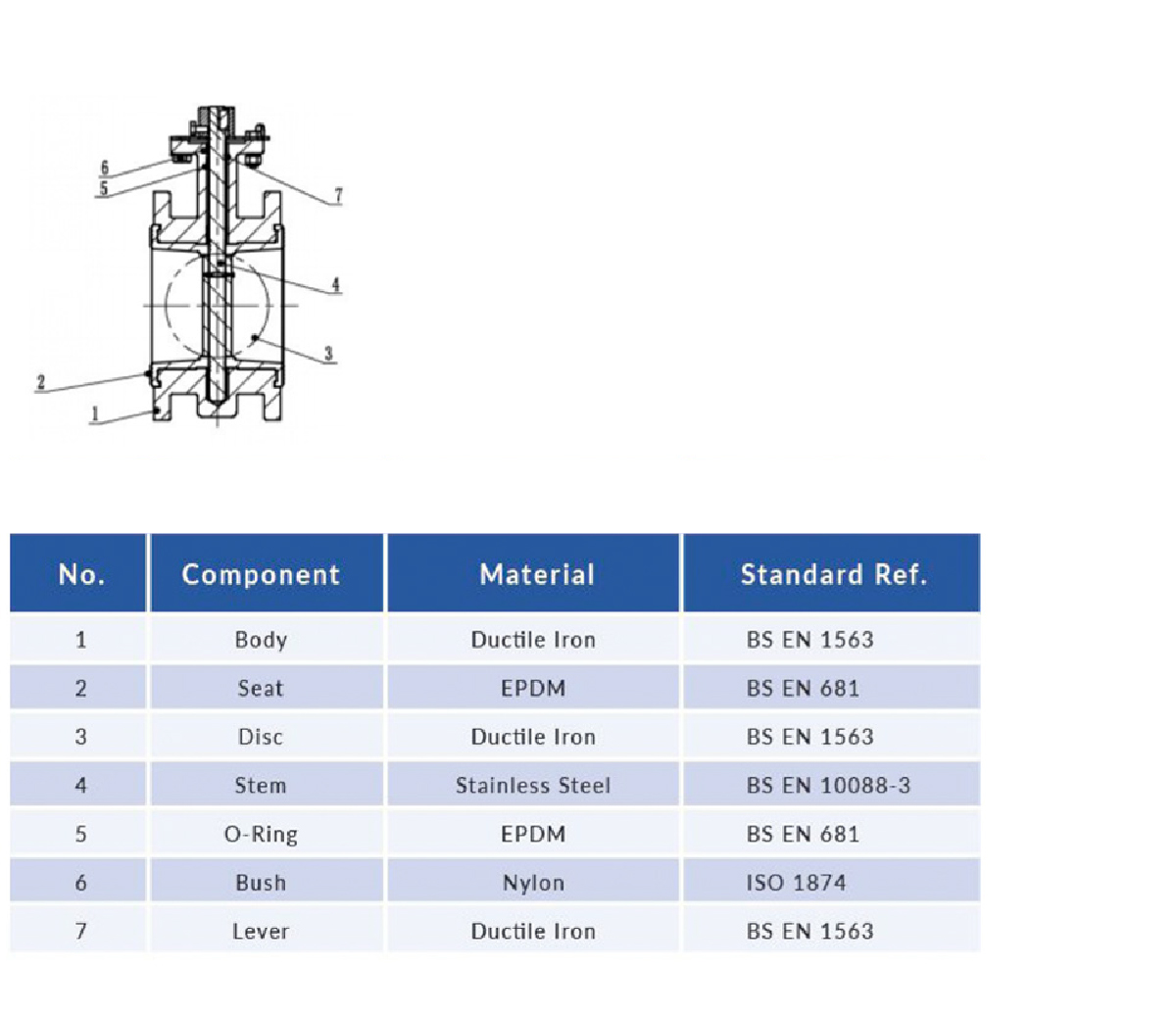

• For System Operation & Maintenance• Working Pressure : 10/16 Bar • Disc Strength : 15/24 Bar • Seat Test Pressure : 11/17.6 Bar • Coating : Fusion Bonded Epoxy • Sealing : EPDM . Standards • Design : BS EN 593 • Flange : BS EN 1092-2 • Top Flange : ISO 5211 . Features • Range of Valve Sizes : DN50 to DN300 • Standard Valve Actuator : Lever Type (Worm Gear Operated With Handwheel By Request )• Standard ISO Top-Flanged For Actuator • Easy Installation With Highly Reliable Jointing Effciency - 2Parts List & Materials

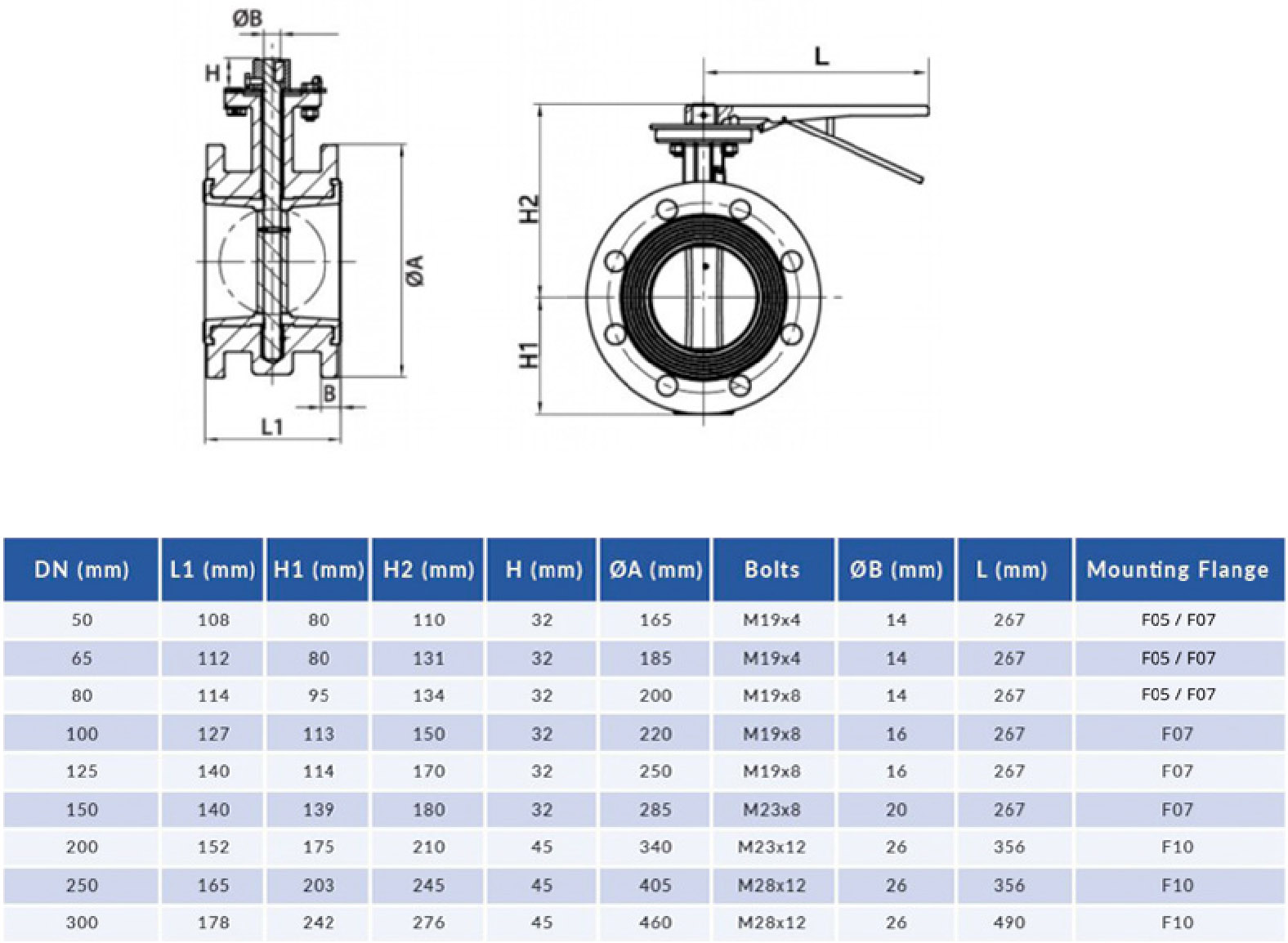

- 3Specifications & Parameters Chart
BUTTERFLY VALVE
CONCENTRIC FLANGED TYPE
- 1Description
LYE Concentric Flanged Butterfly Valve, is constructed with full internal rubber lining vulcanized to the body with quarter turn operating for system isolation. Rubber covered internal body makes no risk of corrosion, and as well as tight sealing of disc closure with no deformation of liner. Concentric disc designs is suitable for dual flow operation, hydrodynamic flow, reduced turbulence, to minimize pressure drop across the valve. LYE Concentric Flanged Butterfly is an ultimum choice to any applications with offering high effciency of operation performance. . • Quarter-Turn Isolating Valves With Full Rubber Covered Body

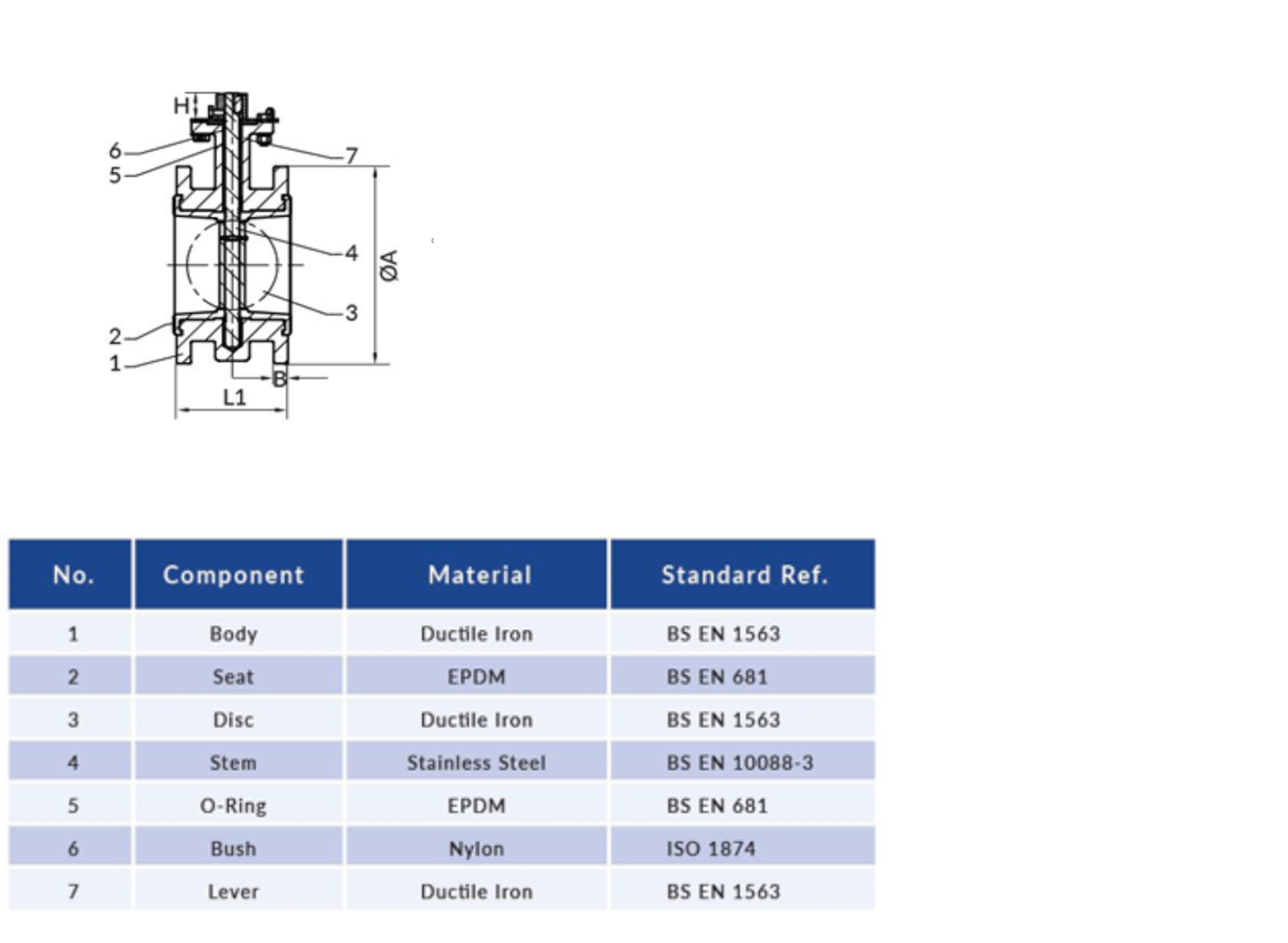

• For System Operation & Maintenance• Working Pressure : 10/16 Bar • Disc Strength : 15/24 Bar • Seat Test Pressure : 11/17.6 Bar • Coating : Fusion Bonded Epoxy • Sealing : EPDM . Standards • Design : BS EN 593 • Flange : BS EN 1092-2 • Top Flange : ISO 5211 . Features • Range of Valve Sizes : DN50 to DN300 • Standard Valve Actuator : Lever Type (Worm Gear Operated With Handwheel By Request )• Standard ISO Top-Flanged For Actuator • Easy Installation With Highly Reliable Jointing Effciency - 2Parts List & Materials

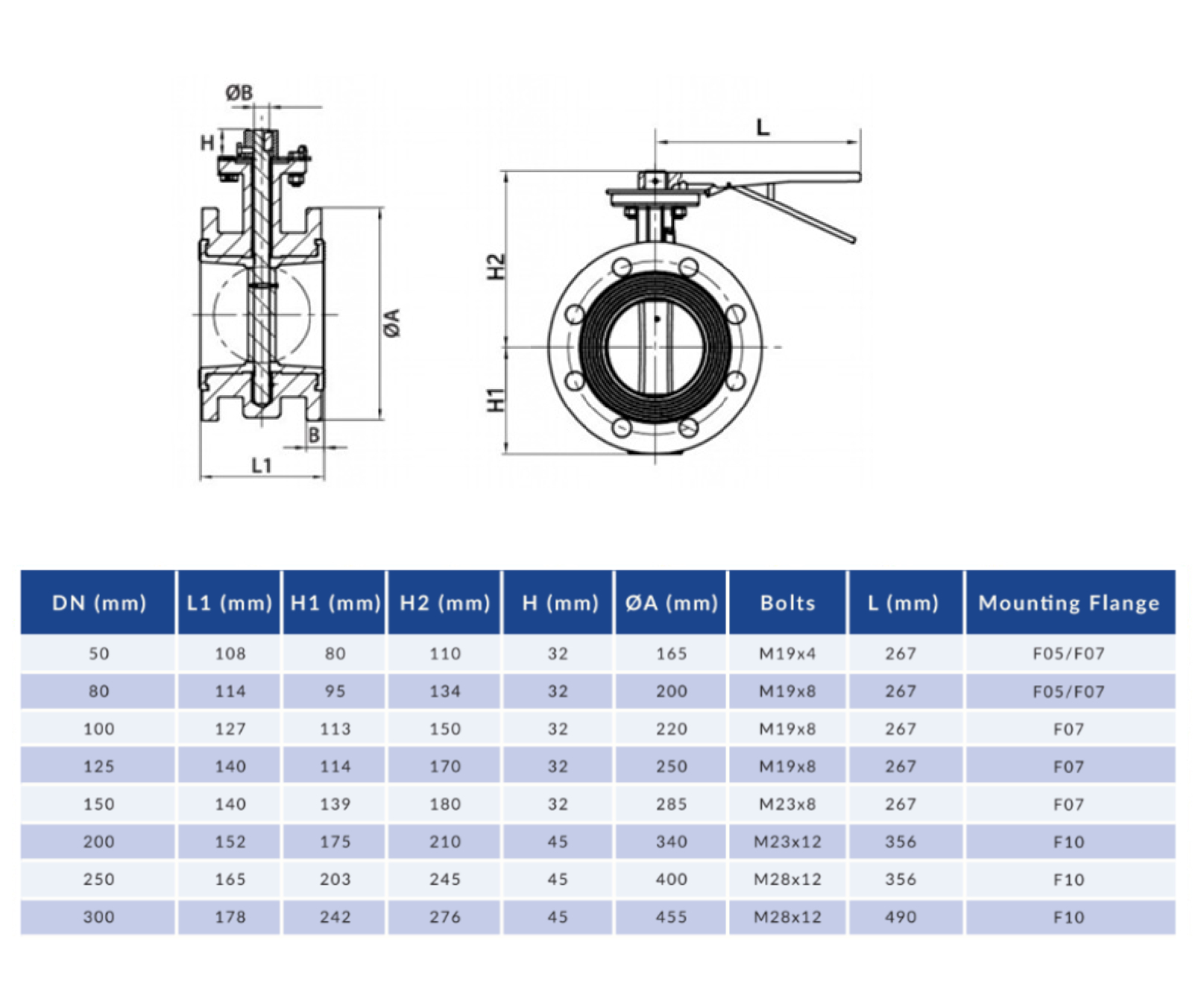

- 3Specifications & Parameters Chart
