CLAMPS & SADDLES
DIRECT DRILL & TAP, BROAD SADDLE FOR PE, PVC-0 & PVC-M
Broad Saddle Body & Tapping Internally Threaded

  1. 1
    Description

    LYE Ductile Iron Ferrous Saddle is designed for connecting branch plastic pipeline to PE, PVC0 & other plastic pipes with same size range at the main pipeline by providing a large profiled surface sealing around the cutting hole on the pipe with leak-tight connection. Ferrous Saddle is used as service clamp which it is attached directly 360° around the pipe surface in order to provide support for the pipe to distribute stresses evenly on the surface as well as at the tapping hole area. LYE Ductile Iron Saddle Solution is designed to provide full support around the circumference of the pipe with sufficient lengths to furnish satisfactory sealing and preventing pipe movement & distortion.
    .
    • Complete With Ferrule For Making Service Connections & Direct
    Under Pressure Tapping Of PE, PVC0 & Other Plastic Pipes With
    Similar Pipe Outside Diameter In Water Mains
    • Broad Saddle Body & Tapping Internally Threaded On Plastic
    Pipeline & Designed To Withstand Same Torque Loads &
    Bending Moments.
    • Tapping Outlet Sizes From Small Which Supply Residential Homes
    To Large Outlets For Commercial & Industrial Users.
    • Designed & Sized To Provide Full Support Around The
    Circumference Of The Pipe OD Systems For Preventing Pipe
    Movement & Distortion
    • Working Pressure : PN 16
    • Coating : Fusion Bonded Epoxy
    • Sealing : EPDM
    .
    Standards
    • Design : Modified SPESIFIKASI JKR 20200-0184-04
    • Test
    : Modified SPESIFIKASI JKR 20200-0184-04 & EN12266 -1
    • Threads : MS ISO 7 / BS 21
    • For PE Pipe : EN12201 / MS1058
    • For PVCO Pipe : ISO 16422
    • For UPVC Pipe : AS/NZS 1477 S2
    • For ABS Pipe : BS5391/92 / MS 1417
    • For PVC-M Pipe ( ? DN150 ) : AS/NZS 4765, S1
    .
    Features
    • Range of Ferrous Saddle for PE,
    PVC0 & Other Plastic Pipes With
    Similar Pipe Outside Diameter, Sizes
    : OD63 to OD355
    • Tapping Outlet Size Ranges : DN20 to DN50
    • Designed For Easy Saddle Mounting, Maintenance Free & Longevity
    • Broad Saddle Body Furnishing Satisfactory Sealing & Preventing
    Pipe Movements & Distortion On Plastic Pipeline.
    .
    *Safety Considerations Should Be Made Before Any Tapping Activities Are Performed

  2. 2
    Parts List & Materials

  3. 3

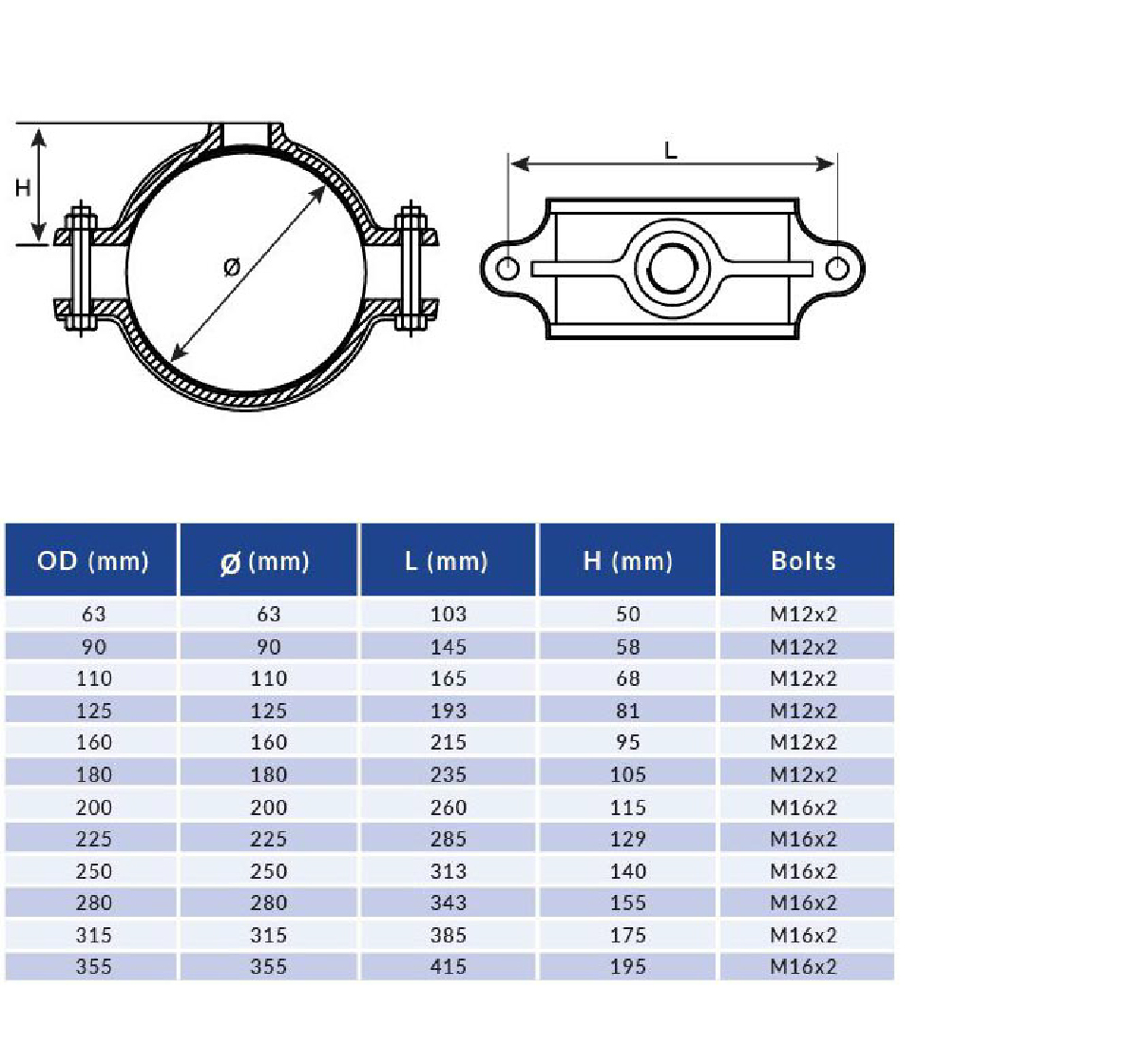

    Specifications & Parameters Chart

CLAMPS & SADDLES
DIRECT DRILL & TAP, BROAD SADDLE FOR PE, PVC-0 & PVC-M
Broad Saddle Body & Tapping Internally Threaded

  1. 1
    Description

    LYE Ductile Iron Ferrous Saddle is designed for connecting branch plastic pipeline to PE, PVC0 & other plastic pipes with same size range at the main pipeline by providing a large profiled surface sealing around the cutting hole on the pipe with leak-tight connection. Ferrous Saddle is used as service clamp which it is attached directly 360° around the pipe surface in order to provide support for the pipe to distribute stresses evenly on the surface as well as at the tapping hole area. LYE Ductile Iron Saddle Solution is designed to provide full support around the circumference of the pipe with sufficient lengths to furnish satisfactory sealing and preventing pipe movement & distortion.
    .
    • Complete With Ferrule For Making Service Connections & Direct
    Under Pressure Tapping Of PE, PVC0 & Other Plastic Pipes With
    Similar Pipe Outside Diameter In Water Mains
    • Broad Saddle Body & Tapping Internally Threaded On Plastic
    Pipeline & Designed To Withstand Same Torque Loads &
    Bending Moments.
    • Tapping Outlet Sizes From Small Which Supply Residential Homes
    To Large Outlets For Commercial & Industrial Users.
    • Designed & Sized To Provide Full Support Around The
    Circumference Of The Pipe OD Systems For Preventing Pipe
    Movement & Distortion
    • Working Pressure : PN 16
    • Coating : Fusion Bonded Epoxy
    • Sealing : EPDM
    .
    Standards
    • Design : Modified SPESIFIKASI JKR 20200-0184-04
    • Test
    : Modified SPESIFIKASI JKR 20200-0184-04 & EN12266 -1
    • Threads : MS ISO 7 / BS 21
    • For PE Pipe : EN12201 / MS1058
    • For PVCO Pipe : ISO 16422
    • For UPVC Pipe : AS/NZS 1477 S2
    • For ABS Pipe : BS5391/92 / MS 1417
    • For PVC-M Pipe ( ? DN150 ) : AS/NZS 4765, S1
    .
    Features
    • Range of Ferrous Saddle for PE,
    PVC0 & Other Plastic Pipes With
    Similar Pipe Outside Diameter, Sizes
    : OD63 to OD355
    • Tapping Outlet Size Ranges : DN20 to DN50
    • Designed For Easy Saddle Mounting, Maintenance Free & Longevity
    • Broad Saddle Body Furnishing Satisfactory Sealing & Preventing
    Pipe Movements & Distortion On Plastic Pipeline.
    .
    *Safety Considerations Should Be Made Before Any Tapping Activities Are Performed

  2. 2
    Parts List & Materials

  3. 3

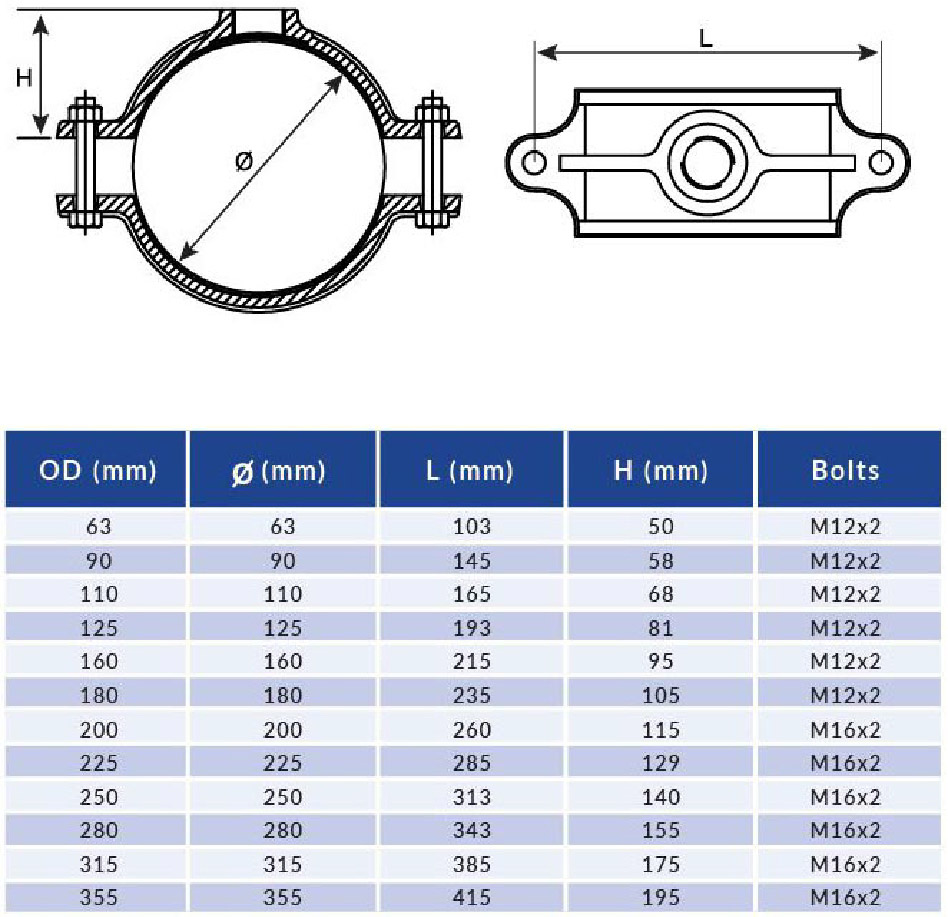

    Specifications & Parameters Chart
