CLAMPS & SADDLES
DIRECT DRILL & TAP BROAD SADDLE FOR UPVC
Broad Saddle Body & Tapping Internally Threaded
Model No. : LYE775DI
- 1Description
LYE Ductile Iron Ferrous Saddle for UPVC pipes is designed for connecting branch plastic pipeline to UPVC & MPVC pipes with same size range at the main pipeline by providing a large profiled surface sealing around the cutting hole on the pipe with leak-tight connection. Ferrous Saddle is used as service clamp which it is attached directly 360? around the pipe surface in order to provide support for the pipe to distribute stresses evenly on the surface as well as at the tapping hole area. LYE Ductile Iron Saddle Solution is designed to provide full support around the circumference of the pipe with sufficient lengths to furnish satisfactory sealing and preventing pipe movement and distortion . • Complete With Ferrule For Making Service Connections & Direct
• Under Pressure Tapping Of UPVC & MPVC Pipes In Water Mains• Broad Saddle Body & Tapping Internally Threaded On Plastic
• Pipeline & Designed To Withstand Same Torque Loads &
• Bending Moments.• Tapping Outlet Sizes From Small Which Supply Residential Homes
• To Large Outlets For Commercial & Industial Users.• Designed & Sized To Provide Full Support Around The
• Circumference Of The Pipe OD Systems For Preventing Pipe
• Movement & Distortion• Working Pressure : PN 16 • Coating : Fusion Bonded Epoxy • Sealing : EPDM . Standards • Design : Modified SPESIFIKASI JKR 20200-0184-04 • Test : Modified SPESIFIKASI JKR 20200-0184-04 & EN12266 -1• Threads : MS ISO 7 / BS 21 • For UPVC Pipe : MS 628 / BS 6920 / BS 3505 • For MPVC Pipe : MS 628 . Features • Range of Ferrous Saddle for
• UPVC & PVCM Pipes Sizes: DN80 to DN300 • Tapping Outlets Size Ranges : ½”, ¾” to 1″ BSP • Designed For Easy Saddle Mounting, Maintenance Free & Longevity • Broad Saddle Body Furnishing Satisfactory Sealing & Preventing
• Pipe Movements & Distortion On Plastic Pipeline.. *Safety Considerations Should Be Made Before Any Tapping Activities Are Performed - 2Parts List & Materials

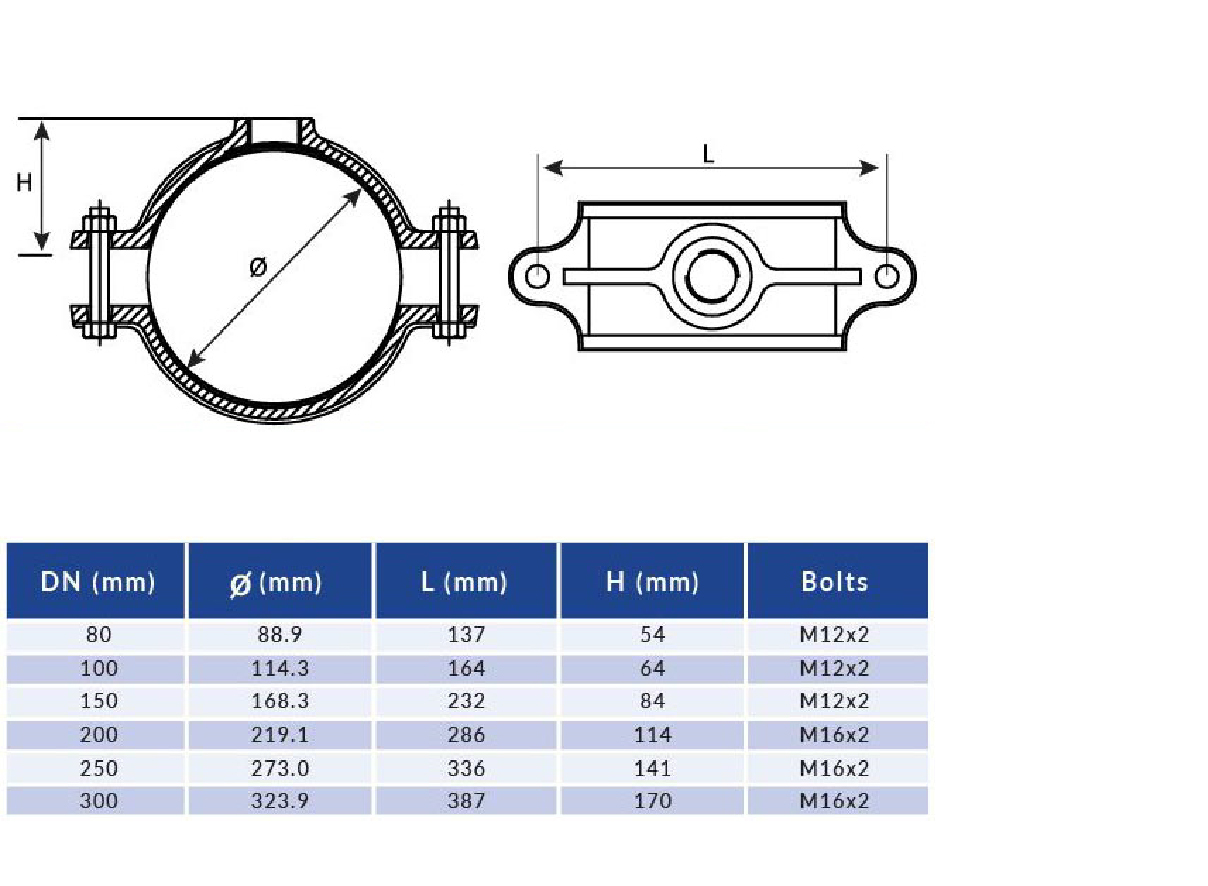

- 3Specifications & Parameters Chart
