FLEXIBLE JOINTS
MECHANICAL FLANGE ADAPTOR FOR DI
Non-Restraint Flange Adaptor for Flange connection
Model No. : 788

  1. 1
    Description





    LYE Mechanical Flange Adaptor is designed to provide a quick, leak free and reliable method of connecting flanged pipe or any flanged fittings to plain-ended pipe. Wedge gasket design allowing various pipe preassembled within OD tolerance, +1 -3 mm and compressing to fit for maximun sealing. A flexible mechanical flanged Jointing solution fits the majority of flange standards, for simple and easy underground installation of flanged equipments, as its accommodate angularity between pipes, allowing normal pipeline movement caused by ground settlement.
    .
    • Flexible Flange adaptor for connecting Ductile Iron flanged pipe or any flanged equipments
    • Ideal for pipeline repair by cut and new pipe replacement method.
    • Working Pressure : : PN16
    • Coating : : Fusion Bonded Epoxy
    • Sealing : : EPDM
    • Angular Deflection : : ± 3°
    .
    Standards
    • Design : SPESIFIKASI JKR 20200-0048-99
    • Test : EN 12266-1
    • Flange : EN 1092-2
    • For Ductile Iron Pipe : BS EN 545 / ISO 2531 / MS 1919 / DIN 28601
    • For Mild Steel Pipe ( ? DN300 ) : BS 534 / SPAN TS 21827 / AS 1579
    .
    Features
    • Range of Flange Adaptor Sizes : DN80 to DN800
    • Wedge Gasket Type allow OD tolerance +1-3mm for water Sealing.
    • Flexible flange adaptor ideal for connecting flanged equipments
    • to allow maintenance and service
    • Long Collar with 225mm Body Sleeve for better prevention of pipe-pull out

  2. 2
    Parts List & Materials

  3. 3

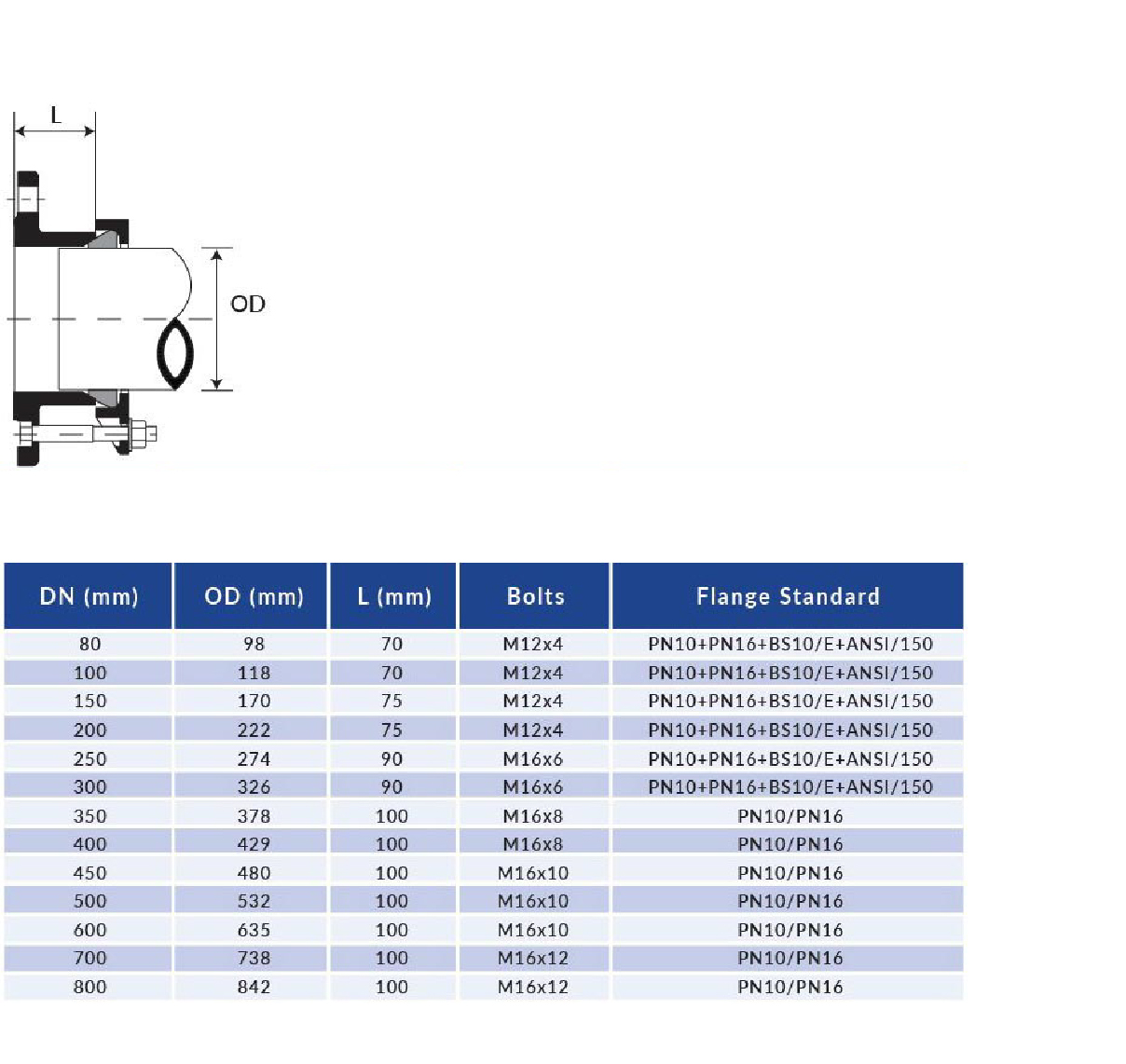

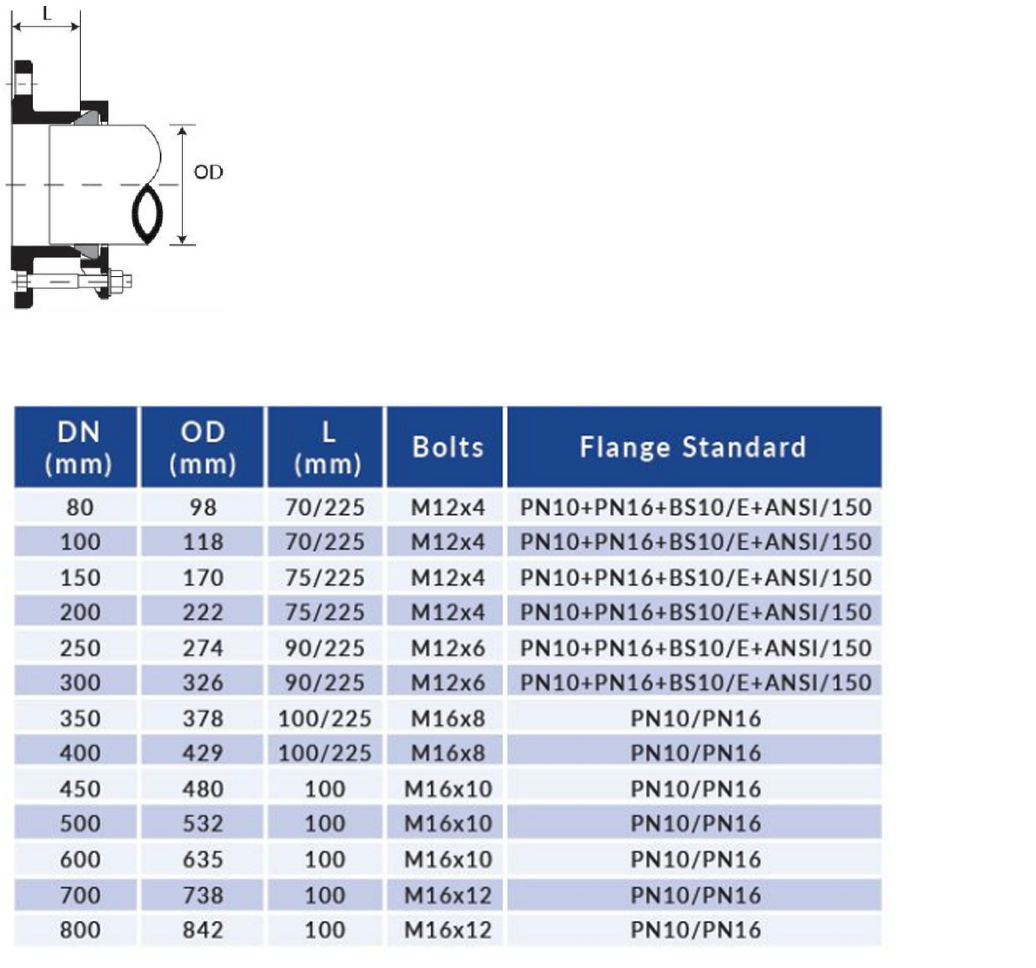

    Specifications & Parameters Chart



FLEXIBLE JOINTS
MECHANICAL FLANGE ADAPTOR FOR DI
Non-Restraint Flange Adaptor for Flange connection
Model No. : 788

  1. 1
    Description





    LYE Mechanical Flange Adaptor is designed to provide a quick, leak free and reliable method of connecting flanged pipe or any flanged fittings to plain-ended pipe. Wedge gasket design allowing various pipe preassembled within OD tolerance, +1 -3 mm and compressing to fit for maximun sealing. A flexible mechanical flanged Jointing solution fits the majority of flange standards, for simple and easy underground installation of flanged equipments, as its accommodate angularity between pipes, allowing normal pipeline movement caused by ground settlement.
    .
    • Flexible Flange adaptor for connecting Ductile Iron flanged pipe or any flanged equipments
    • Ideal for pipeline repair by cut and new pipe replacement method.
    • Working Pressure : : PN16
    • Coating : : Fusion Bonded Epoxy
    • Sealing : : EPDM
    • Angular Deflection : : ± 3°
    .
    Standards
    • Design : SPESIFIKASI JKR 20200-0048-99
    • Test : EN 12266-1
    • Flange : EN 1092-2
    • For Ductile Iron Pipe : BS EN 545 / ISO 2531 / MS 1919 / DIN 28601
    • For Mild Steel Pipe ( ? DN300 ) : BS 534 / SPAN TS 21827 / AS 1579
    .
    Features
    • Range of Flange Adaptor Sizes : DN80 to DN800
    • Wedge Gasket Type allow OD tolerance +1-3mm for water Sealing.
    • Flexible flange adaptor ideal for connecting flanged equipments
    • to allow maintenance and service
    • Long Collar with 225mm Body Sleeve for better prevention of pipe-pull out

  2. 2
    Parts List & Materials

  3. 3

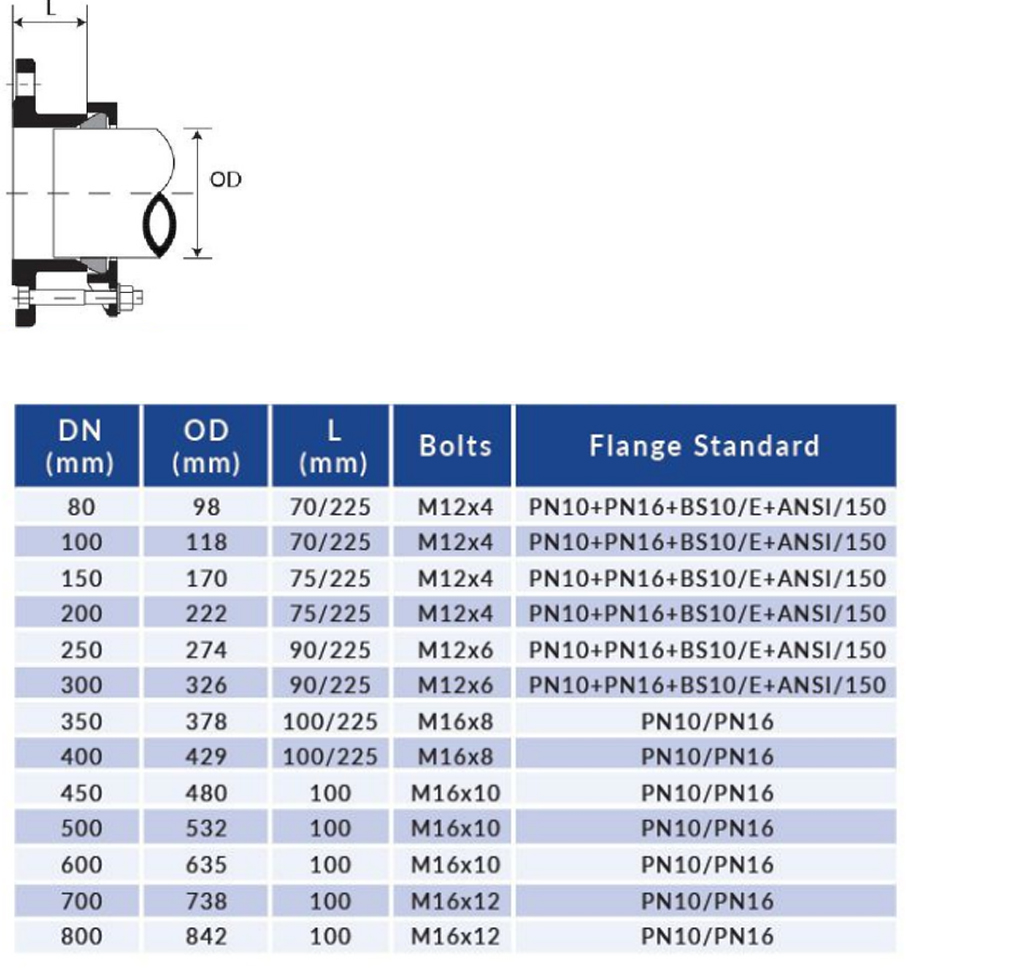

    Specifications & Parameters Chart
