FLEXIBLE JOINTS
DISMANTLING JOINT
For Providing Adjustment to Flanged Pipework
- 1Description
LYE flanged Dismantling Jointis a double-flanged fittings that allows longitudinal adjustment in flanged pipe systems. Flanged dismantling joint shall be a system used to provide an axial movement to accommodate gap between two mating flanges when fitting valves and equipment. It provides adjustability to system installation by combining a Flanged Coupling Adaptor and a Flanged Spigot into one assembly, with longitudinal adjustment by telescoping action of the spigot inside the Flanged Coupling Adaptor. . • For allowing longitudinal adjustment in flanged pipe system • Working Pressure : PN16 • Coating : Fusion Bonded Epoxy • Sealing : EPDM . Standards • Design : SPESIFIKASI JKR 20200-0048-99 • Test : EN 12266-1 • Flange : EN 1092-2 • For Ductile Iron Pipe : BS EN 545 / ISO 2531 / MS 1919 • For Mild Steel Pipe : BS 534 / SPAN TS 21827 / AS 1579 . Features • Range of Flanged Dismantling

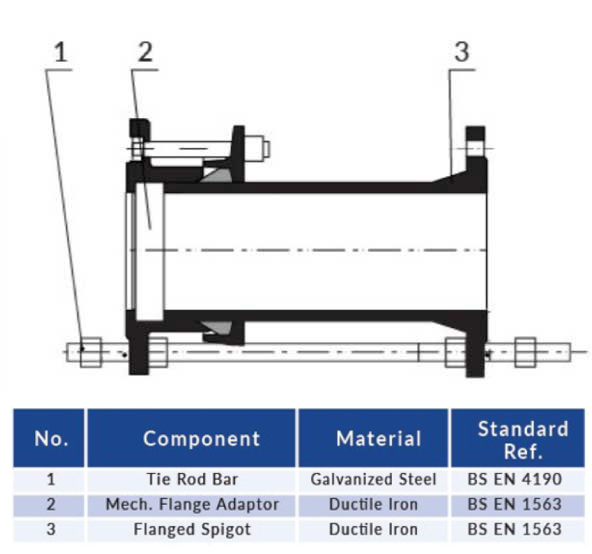

• Joint Sizes: DN100 to DN150 • Accommodates up to 50mm/2″ longitudinal adjustment • For fast and simple maintenance of valves, pumps or metering system • For allowing the required length locking with tie bars supplied. - 2Parts List & Materials
- 3Specifications & Parameters Chart
FLEXIBLE JOINTS
DISMANTLING JOINT
For Providing Adjustment to Flanged Pipework
- 1Description
LYE flanged Dismantling Jointis a double-flanged fittings that allows longitudinal adjustment in flanged pipe systems. Flanged dismantling joint shall be a system used to provide an axial movement to accommodate gap between two mating flanges when fitting valves and equipment. It provides adjustability to system installation by combining a Flanged Coupling Adaptor and a Flanged Spigot into one assembly, with longitudinal adjustment by telescoping action of the spigot inside the Flanged Coupling Adaptor. . • For allowing longitudinal adjustment in flanged pipe system • Working Pressure : PN16 • Coating : Fusion Bonded Epoxy • Sealing : EPDM . Standards • Design : SPESIFIKASI JKR 20200-0048-99 • Test : EN 12266-1 • Flange : EN 1092-2 • For Ductile Iron Pipe : BS EN 545 / ISO 2531 / MS 1919 • For Mild Steel Pipe : BS 534 / SPAN TS 21827 / AS 1579 . Features • Range of Flanged Dismantling

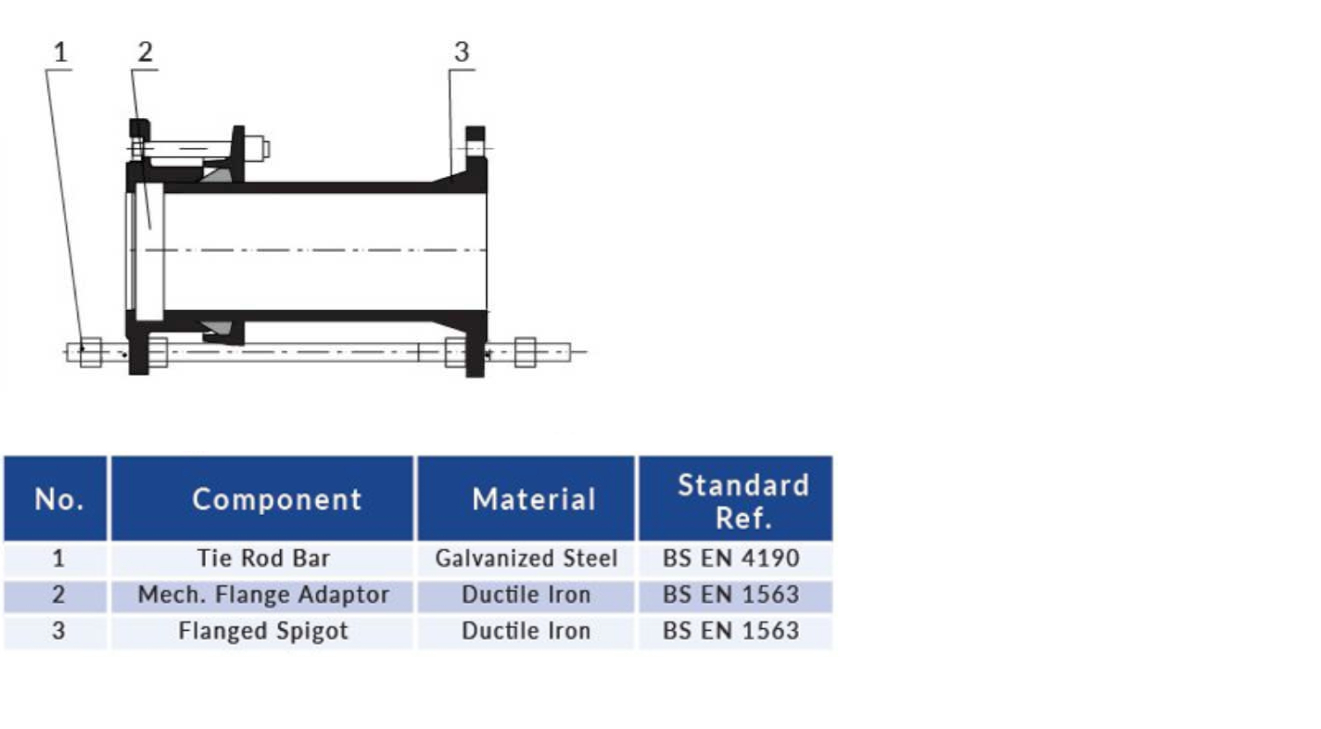

• Joint Sizes: DN100 to DN150 • Accommodates up to 50mm/2″ longitudinal adjustment • For fast and simple maintenance of valves, pumps or metering system • For allowing the required length locking with tie bars supplied. - 2Parts List & Materials
- 3Specifications & Parameters Chart
