FOOT VALVE
RELIABLE PUMP PROTECTION & BACKFLOW PREVENTION
- 1Description

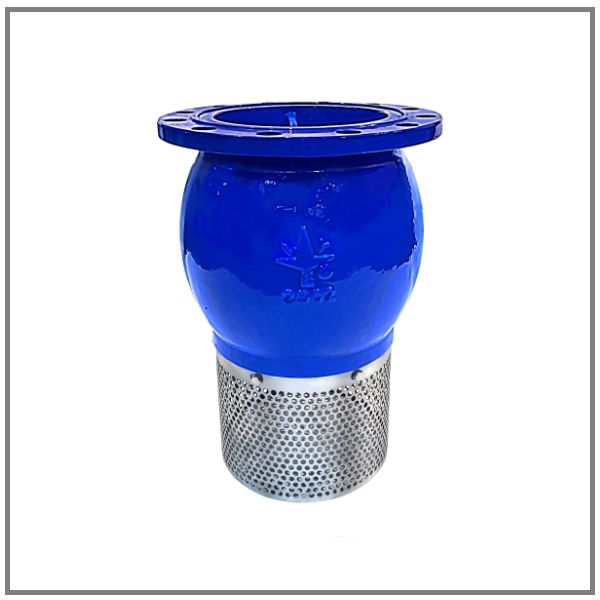

LYE Foot valve, shaped in globe body style, designed to be installed at the suction end of a pump to prevent backflow and maintains pump pressure. Capable in High Flow Rates, with Minimal Loss, it is suitable for water, oil and others.

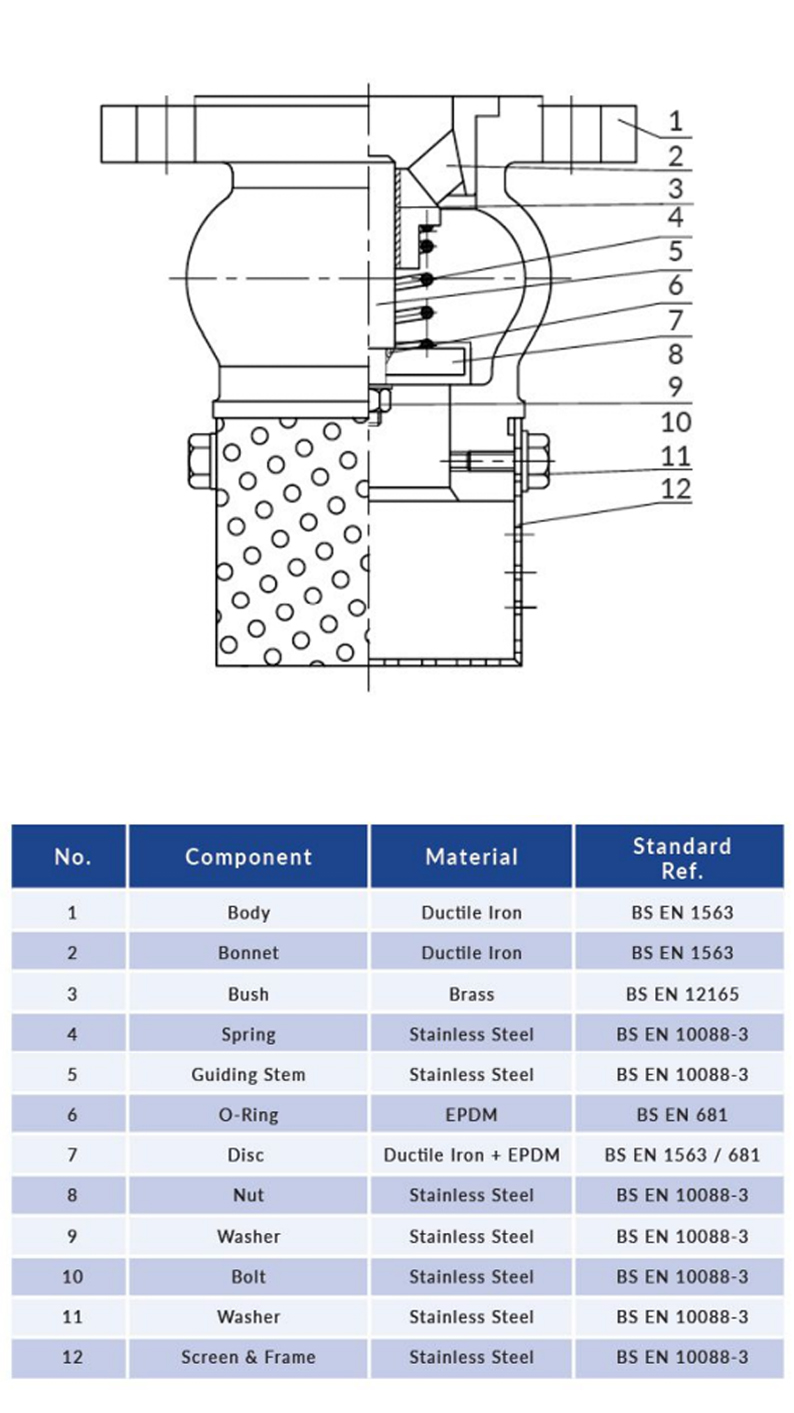

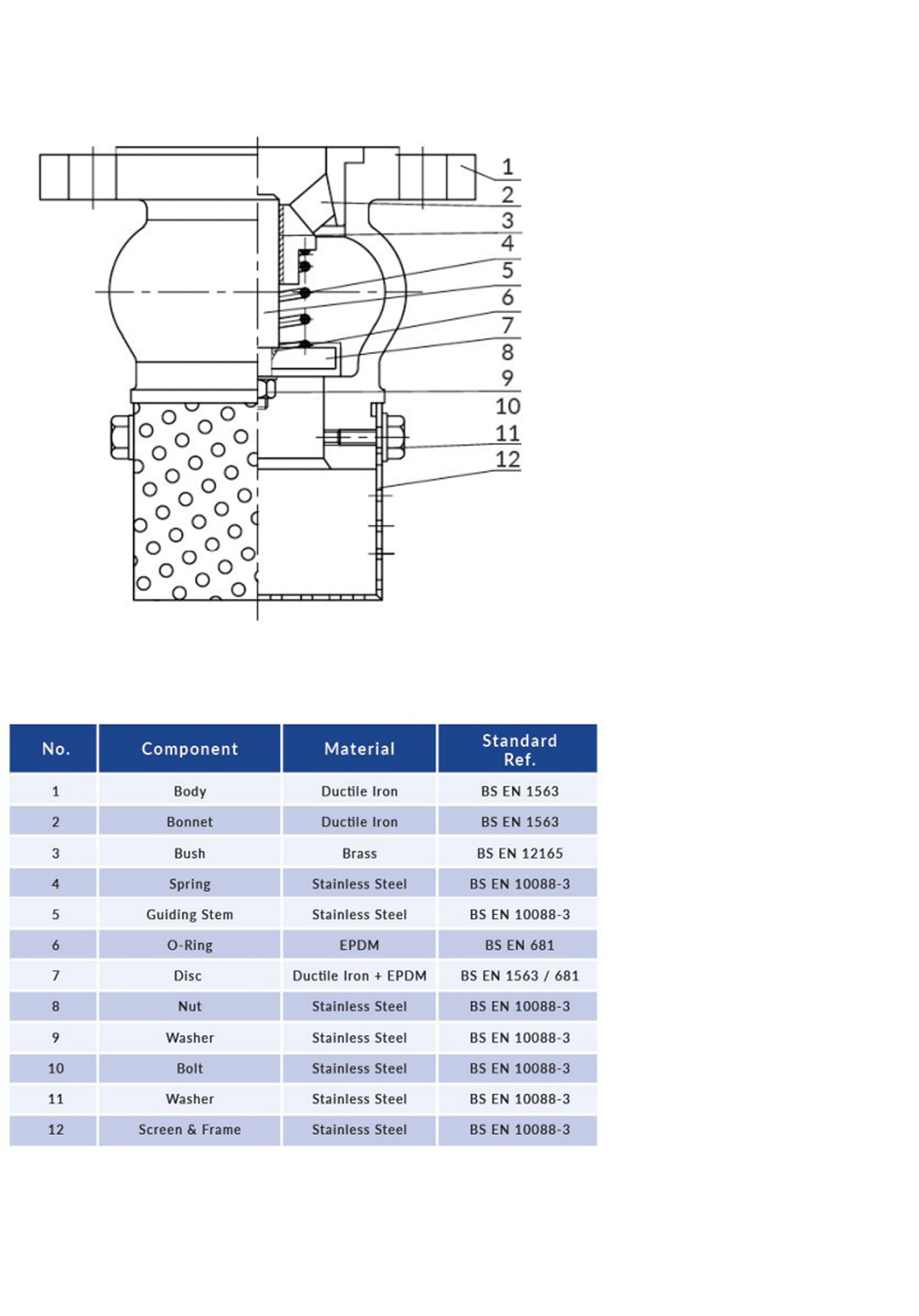

• Working Pressure : PN16 • Shell Test Pressure : Up to 24 Bar • Temperature Range : Up to 80 °C • Coating : Fusion Bonded Epoxy . Standards • Design Standard Reference : EN 12334 • Test Standard Reference : EN 12266 • Flange Connection Compliant : EN 1092 . Features • Range : DN50 to DN300 • A Strainer at the Open End of the Valve Filters out Debris, Sediment, and Other Particles that could damage the Pump or Clog the Lines • Install Foot Valve in a Vertical Position for Best and Most Efficient Operation - 2Parts List & Materials

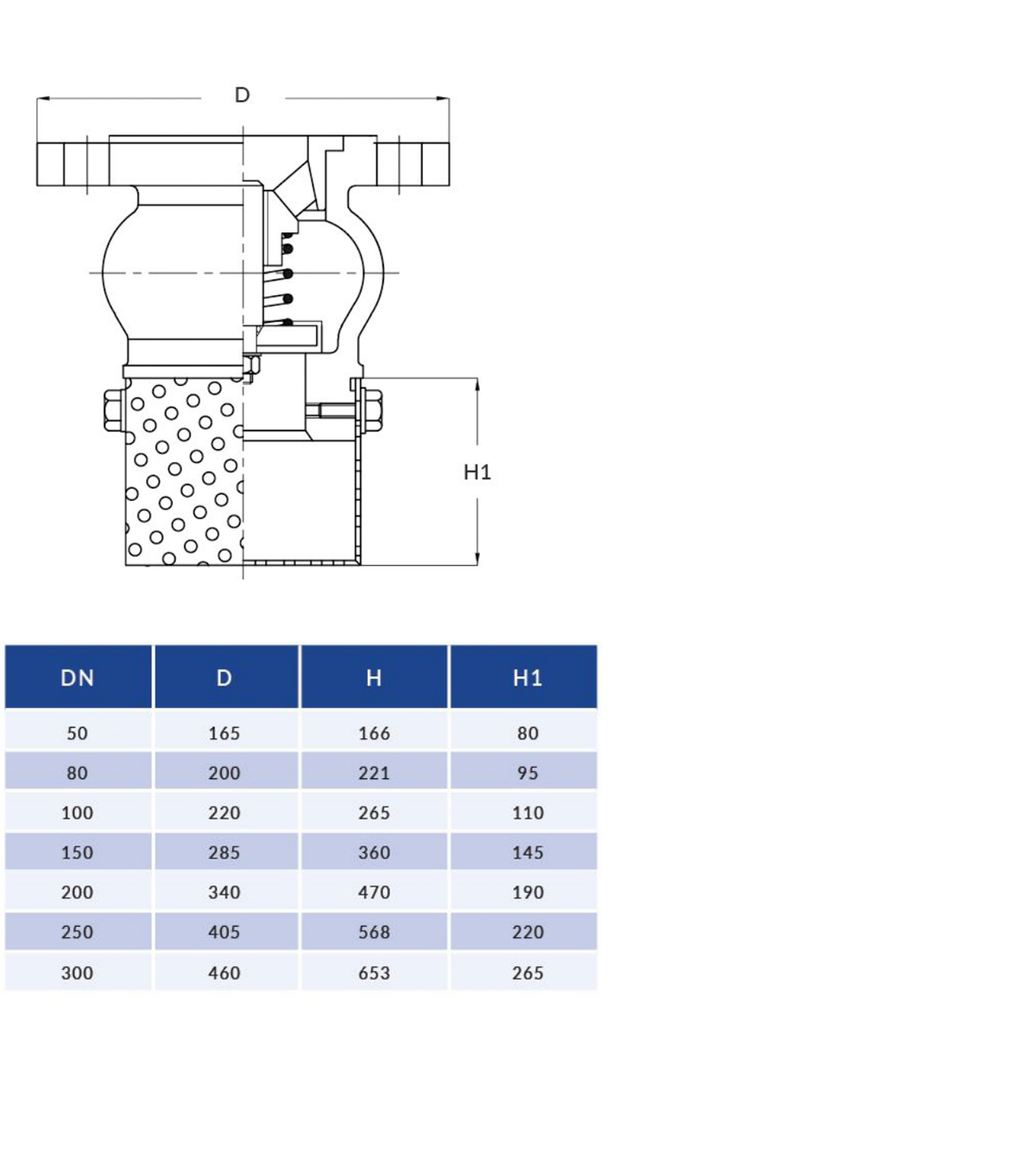

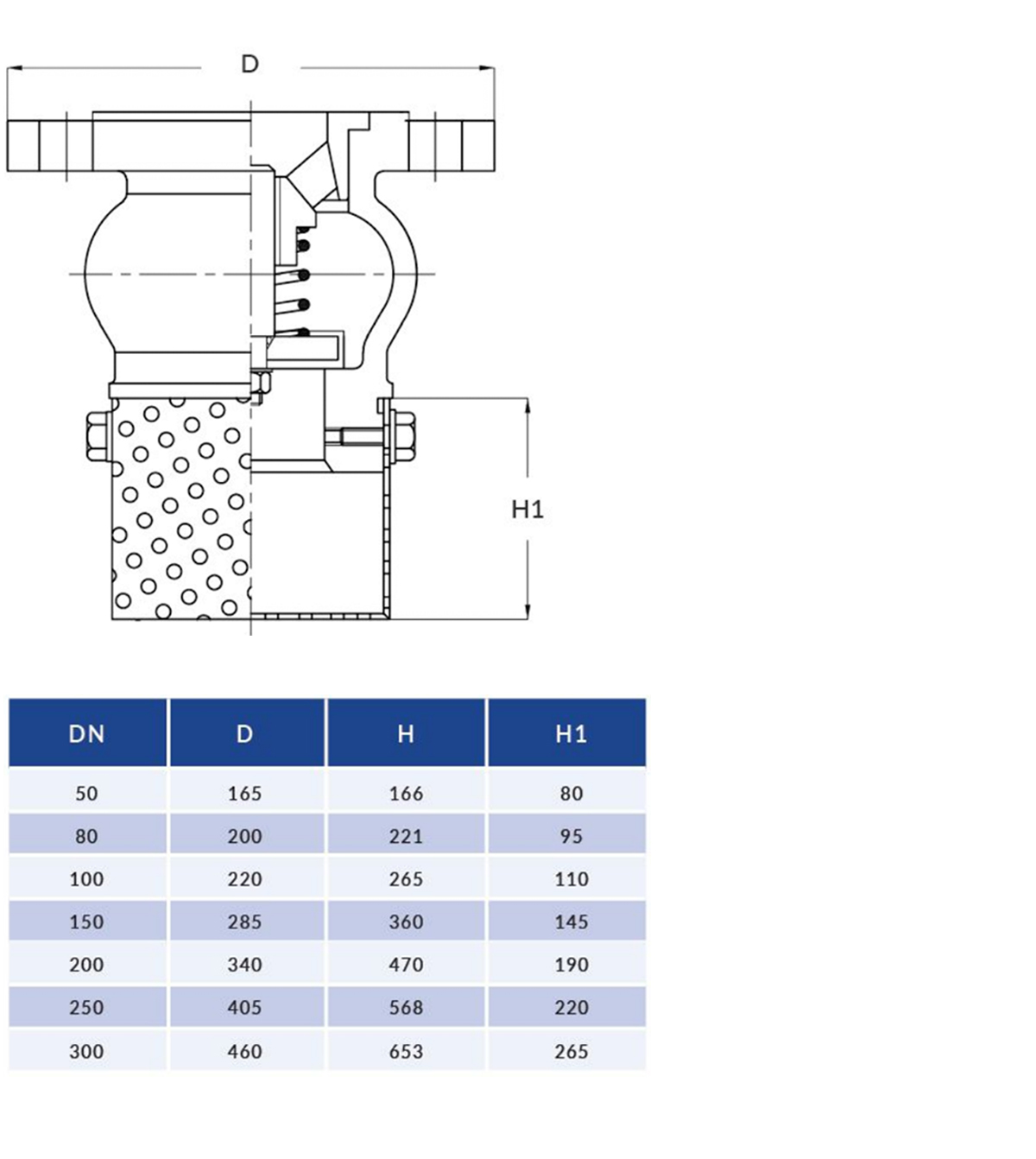

- 3Specifications & Parameters Chart
FOOT VALVE
RELIABLE PUMP PROTECTION & BACKFLOW PREVENTION
- 1Description
LYE Foot valve, shaped in globe body style, designed to be installed at the suction end of a pump to prevent backflow and maintains pump pressure. Capable in High Flow Rates, with Minimal Loss, it is suitable for water, oil and others.
• Working Pressure : PN16 • Shell Test Pressure : Up to 24 Bar • Temperature Range : Up to 80 °C • Coating : Fusion Bonded Epoxy . Standards • Design Standard Reference : EN 12334 • Test Standard Reference : EN 12266 • Flange Connection Compliant : EN 1092 . Features • Range : DN50 to DN300 • A Strainer at the Open End of the Valve Filters out Debris, Sediment, and Other Particles that could damage the Pump or Clog the Lines • Install Foot Valve in a Vertical Position for Best and Most Efficient Operation - 2Parts List & Materials
- 3Specifications & Parameters Chart
