JOINT RESTRAINT SOLUTIONS
POLY RESTRAINT LARGE DIAMETER FLANGE ADAPTOR
Large Tolerance & Flexible Flange Adaptor with End-Loaded Resistance
- 1Description
LYE Poly Restraint Large Diameter Flange Adaptor is designed for connecting large diameter flanged ended PE, PVC-O pipes and flanged fittings with all kind of pipe materials. End restraint gripping allow the total locking of large diameter PE Pipe for preventing pipe pull-out during installation for connecting flange equipments . Design mechanism allows easy asembly and disassembly of existing/installed valves or flange equipments with connecting large diameter PE pipe with minor pipe ovality & deformation. Flexible large diameter flange adaptor with system restraint is an ideal solution for easy and reliable flanged connection on large diameter PE Pipe connecting flanged ended existing and new pipelines, and as well as valves & flanged equipments under pipeline repairs & maintenance works with nagating thrust blocks system. In addition, LYE Poly Restraints Large Diameter Flange Adaptor accommodates angularity between pipes, allowing pipeline movement caused by ground settlement, changing flow direction, pressure difference, system vibration, and providing easy installation on buried large diameter PE & PVC-O Pipes for connecting valves and flanged equipments. Alternate Solution to large diameter PE electrofusion and butt fusion, and large diameter PVC-O push-in joints for all project-site conditions with system flexibility, especially for connecting flanged equipements. . • Flexible & Restraint Flange Adaptor for connecting large diameter PE, PVC-O flanged pipes or any others flanged equipments in all kinds of material pipes. • Ideal for connecting large diameter plastic pipe (PE, PVC-O & Etc) with flanged equipments to allow pipeline repair, maintenance and service works, optimizing works efficiency and planning. • Working Pressure : PN10/PN 16 • Coating : Fusion Bonded Epoxy • Sealing : EPDM • Angular Deflection : ± 3° . Standards • Design : EN 12842 • Test : EN 12266-1 • Flange : EN 1092-2 • For PE Pipe : EN 12201 / MS 1058 / AS 1159 • For PVC-O Pipe : ISO 16422 . Features • Range of Poly Restraint Large Diameter Flange Adaptor Sizes : OD355 – OD630

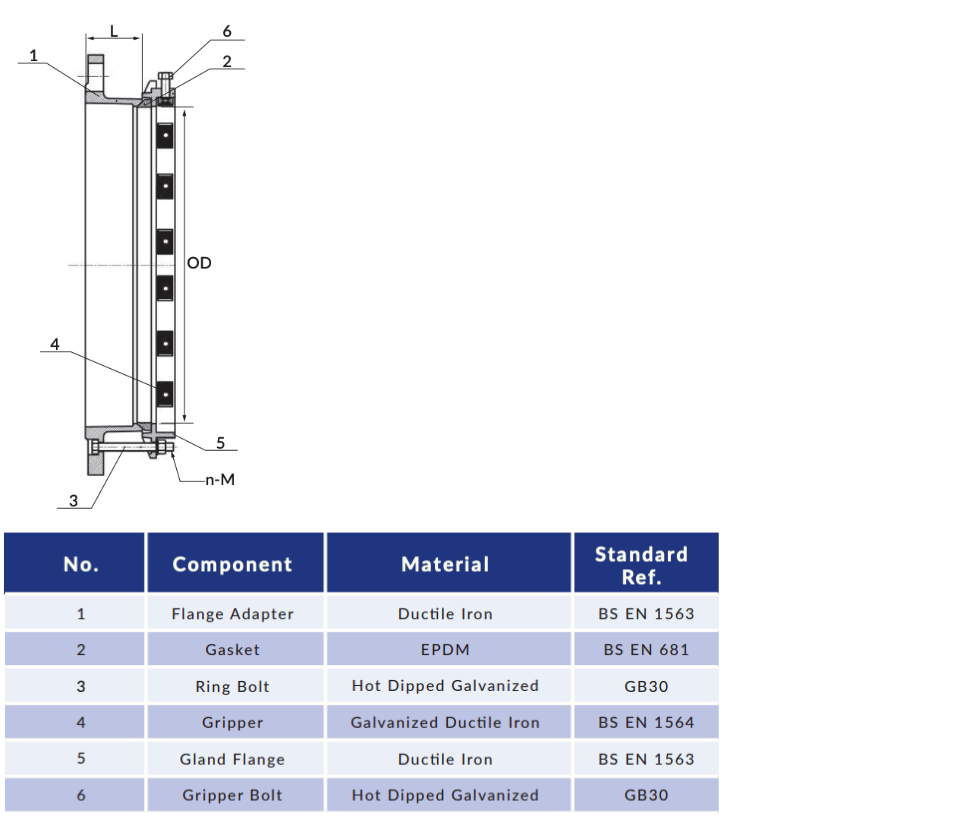

f• End-load resistant mechanism for total pipe locking & prevention pipe pull-out during installation when connecting valves and flanged equipments • Easy installation on buried large diameter PE Pipe for accommodating on minor pipe ovality & deformation. • Alternate solution to flange-ended connection with large diameter PE electrofusion and butt fusion, and large diameter PVC-O push-in joints for all project-site conditions with system flexibility - 2Parts List & Materials

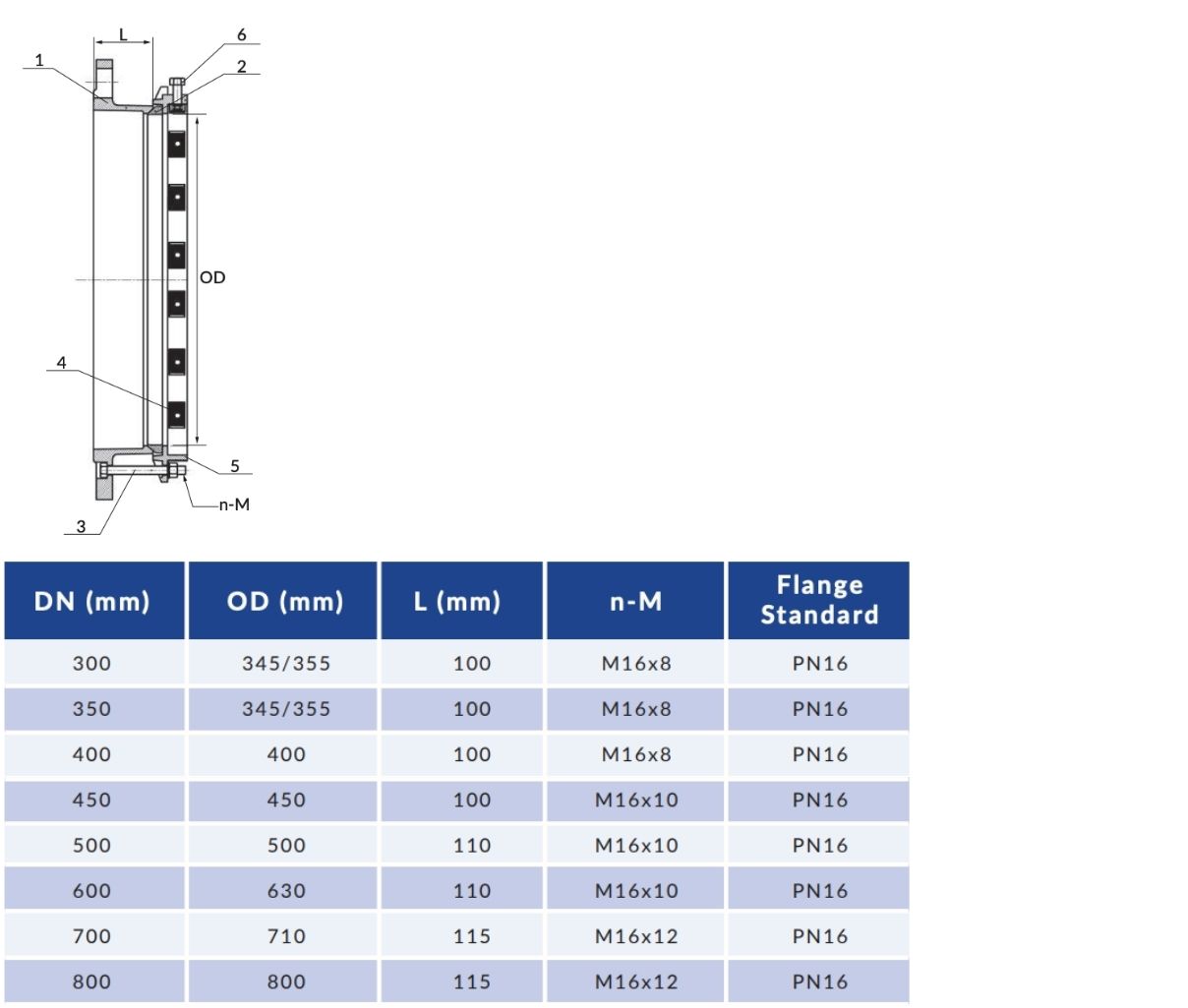

- 3Specifications & Parameters Chart
JOINT RESTRAINT SOLUTIONS
POLY RESTRAINT LARGE DIAMETER FLANGE ADAPTOR
Large Tolerance & Flexible Flange Adaptor with End-Loaded Resistance
- 1Description
LYE Poly Restraint Large Diameter Flange Adaptor is designed for connecting large diameter flanged ended PE, PVC-O pipes and flanged fittings with all kind of pipe materials. End restraint gripping allow the total locking of large diameter PE Pipe for preventing pipe pull-out during installation for connecting flange equipments . Design mechanism allows easy asembly and disassembly of existing/installed valves or flange equipments with connecting large diameter PE pipe with minor pipe ovality & deformation. Flexible large diameter flange adaptor with system restraint is an ideal solution for easy and reliable flanged connection on large diameter PE Pipe connecting flanged ended existing and new pipelines, and as well as valves & flanged equipments under pipeline repairs & maintenance works with nagating thrust blocks system. In addition, LYE Poly Restraints Large Diameter Flange Adaptor accommodates angularity between pipes, allowing pipeline movement caused by ground settlement, changing flow direction, pressure difference, system vibration, and providing easy installation on buried large diameter PE & PVC-O Pipes for connecting valves and flanged equipments. Alternate Solution to large diameter PE electrofusion and butt fusion, and large diameter PVC-O push-in joints for all project-site conditions with system flexibility, especially for connecting flanged equipements. . • Flexible & Restraint Flange Adaptor for connecting large diameter PE, PVC-O flanged pipes or any others flanged equipments in all kinds of material pipes. • Ideal for connecting large diameter plastic pipe (PE, PVC-O & Etc) with flanged equipments to allow pipeline repair, maintenance and service works, optimizing works efficiency and planning. • Working Pressure : PN10/PN 16 • Coating : Fusion Bonded Epoxy • Sealing : EPDM • Angular Deflection : ± 3° . Standards • Design : EN 12842 • Test : EN 12266-1 • Flange : EN 1092-2 • For PE Pipe : EN 12201 / MS 1058 / AS 1159 • For PVC-O Pipe : ISO 16422 . Features • Range of Poly Restraint Large Diameter Flange Adaptor Sizes : OD355 – OD630
f• End-load resistant mechanism for total pipe locking & prevention pipe pull-out during installation when connecting valves and flanged equipments • Easy installation on buried large diameter PE Pipe for accommodating on minor pipe ovality & deformation. • Alternate solution to flange-ended connection with large diameter PE electrofusion and butt fusion, and large diameter PVC-O push-in joints for all project-site conditions with system flexibility - 2Parts List & Materials
- 3Specifications & Parameters Chart
